 Chinese Powder Medicine Drying Sterilizers YXQ-MG-Z Series Chinese Medicine Sterilizing Cabinet |
|

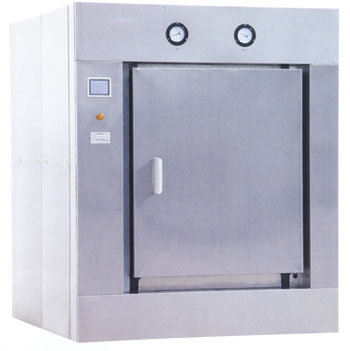

YXQ-MG-Z Series Chinese Medicine Sterilizing Cabinet
 |
¡¡Basic Function: Its inner layer and the outside layer are controlled separately.Its sleeving uses steam preheating and drying.Its inner layer uses steam to sterilize.It specially sets Chinese medicine and Chinese medicine powder sterilizing program. The sterilizing tray can be used as common baking tray.Once shaping, no washing dead angle.
¡¡¡¡ Equipment Body: Horizontal rectangle structure. High-quality acid-proof stainless steel 304 inner,stainless steel wiring-drawing plate for decoration case. The sealing door can adopt double-door-leaf auto-moving door, mechanical door or bar-supporting door.
¡¡¡¡ Control system: It can adopt computer-control or PLC+HMI system. It adopts temperature time and FO value double-monitor to ensure the sterilizing results. The system inspects temperature correctly and runs steadily.It has complete sterilizing record.
¡¡¡¡ Pipeline system: It adopts the most excellent set in the trade.
|
|
YXQ.MG-208-Z |
YXQ.MG-210-Z |
YXQ.MG-215-Z |
YXQ.MG-220-Z |
YXQ.MG-225-Z |
YXQ.MG-240-Z |
YXQ.MG-250-Z |
|
|
0.8 |
1.2 |
1.5 |
2.0 |
2.5 |
4.0 |
5.0 |
|
Inner size
L¡ÁW¡ÁH |
1920¡Á1350¡Á1800(single) |
1755¡Á1450¡Á1900 (single) |
2165¡Á1450¡Á1900(single) |
2060¡Á2000¡Á2000(single) |
2160¡Á2000¡Á2200(single) |
2700¡Á1000¡Á1500 |
3500¡Á1000¡Á1500 |
|
Outer size
L¡ÁW¡ÁH |
1980¡Á1350¡Á1800(double) |
1840¡Á1450¡Á1900(double) |
2250¡Á1450¡Á1900(double) |
2100¡Á2000¡Á2000(double) |
2200¡Á2000¡Á2200(double) |
3100¡Á2000¡Á2200 |
3900¡Á2000¡Á2200 |
|
Steam |
0.4-0.8Mpa
40kg |
0.4-0.8Mpa
50kg |
0.4-0.8Mpa
60kg |
0.4-0.8Mpa
70kg |
0.4-0.8Mpa
80kg |
0.4-0.8Mpa
1200kg |
0.4-0.8Mpa
1500kg |
|
Washing water |
0.15-0.3Mpa
55kg |
0.15-0.3Mpa
60kg |
0.15-0.3Mpa
65kg |
0.15-0.3Mpa
70kg |
0.15-0.3Mpa
75kg |
0.15-0.3Mpa
100kg |
0.15-0.3Mpa
100kg |
|
Compressed air(m3) |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
|
Power(kw) |
3 |
3 |
3 |
4.5 |
4.5 |
6 |
6 |
|
Net weight(kg) |
1700 |
2100 |
2500 |
3000 |
3500 |
4500 |
5000 |
|
Design pressure(Mpa) |
0.245
|
|
Design temperature¡æ |
139 |
|
|
The product information will probably be updated without notice, if that happens, please refer to the latest technical material. |
|
  |
|
|
