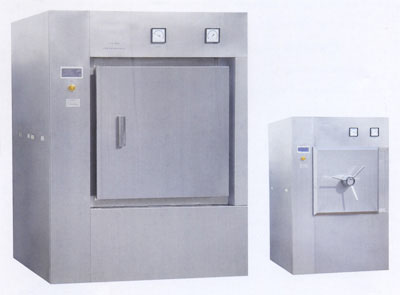

Technical Specifications:
1.The sterilizer is cubiod structure, which is made of 304 stainless steel.
2. The sterilizer has two ways of opening and closing door, hand-operated door structure or automatically-operated door structure.
3.The door of the sterilizer has two sealing ways, mechanically sealed or automatically sealed by compressed air.
4. Double-door Structure. It has double-door safety interlocking system. The front door and the back door can not be open at the same time.
5.The pipeline system is composed of the controlling valve, pipelines and the filter.
6.The controlling system is mainly composed of PLC from Mitsubishi.
7.The sterilizer has multiple sets of sterilizing programs, mechanically sterilizing program, clothing sterilizing program, liquid sterilizing program and other special sterilizing programs according to users' needs.

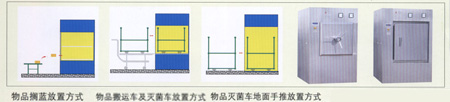

8.Loading way of Goods:
Main Parameter Table of Pulsation Vacuum Sterilizer(Mechanical Door Series)
|
|
YXQ.MG-202Ⅱ |
YXQ.MG-203Ⅱ |
YXQ.MG-206Ⅱ |
YXQ.MG-208Ⅱ |
YXQ.MG-210Ⅱ |
YXQ.MG-215Ⅱ |
YXQ.MG-220Ⅱ |
YXQ.MG-225Ⅱ |
|
|
0.25 |
0.36 |
0.6 |
0.8 |
1.2 |
1.5 |
2.0 |
2.5 |
|
Inner chamber size
L×W×H |
1000×500
×500 |
1020×550
×650 |
1240×650
×750 |
1640×650
×750 |
1500×750
×1050 |
1910×750
×1050 |
1700×1000
×1200 |
1800×1000
×1500 |
|
External size
L×W×H |
1280×1250
×1800(Odd)
1340×1250
×1800( even) |
1290×1250
×1800(Odd)
1360×1250
×1800( even) |
1520×1350
×1800(Odd)
1580×1350
×1800( even) |
1920×1350
×1800(Odd)
1980×1350
×1800( even) |
1755×1450
×1900(Odd)
1840×1450
×1900( even) |
2165×1450
×1900(Odd)
2250×1450
×1900( even) |
2060×2000
×2000(Odd)
2100×2000
×2000( even) |
2160×2000
×2000(Odd)
2200×2000
×2200( even) |
|
Steam |
15kg |
20kg |
30kg |
40kg |
40kg |
60kg |
70kg |
80kg |
|
Washing water |
40kg |
45kg |
50kg |
55kg |
60kg |
65kg |
70kg |
75kg |
|
Compressed air(m3) |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
|
Power (kw) |
3 |
3 |
3 |
3 |
3 |
3 |
4.5 |
4.5 |
|
Net weight(kg) |
700 |
1200 |
1500 |
1700 |
2100 |
2500 |
3000 |
3500 |
|
Design pressure(Mpa) |
0.245
|
|
Design temperature(℃) |
139 |
Main Parameter Table of YXQ.MG Series Pulsation Vacuum Sterilizer (Hand-operated Door Series)
|
|
YXQ.MG-201 |
YXQ.MG-202 |
YXQ.MG-203 |
YXQ.MG-206 |
YXQ.MG-208 |
YXQ.MG-2105 |
YXQ.MG-215 |
|
Volume
（m3) |
0.1 |
0.25 |
0.36 |
0.6 |
0.8 |
1.2 |
1.5 |
|
Inner Chamber size
L×W×H |
500×500×500 |
1000×500×500 |
1100×630
×630 |
1380×680
×680 |
1730×680
×680 |
1500×750
×1050 |
1910×750
×1050 |
|
External size
L×W×H |
930×1080
×1800(Odd )
1185×1080
×1800( even) |
1435×1020
×1800(Odd )
1686×1020
×1800( even) |
1540×1150
×1800(Odd )
1785×1150
×1800( even) |
1820×1210
×1800(Odd )
2065×1210
×1800( even) |
2170×1210
×1800(Odd )
2415×1210
×1800( even) |
2006×1340
×1900(Odd )
2296×1340
×1900( even） |
2416×1340
×1900(Odd )
2706×1340
×1900( even) |
|
|
8kg |
15kg |
20kg |
30kg |
40kg |
50kg |
60kg |
|
|
20kg |
40kg |
45kg |
50kg |
55kg |
60kg |
65kg |
|
Compressed air(m3) |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
|
Power (kw) |
3 |
3 |
3 |
3 |
3 |
3 |
4.5 |
|
Net weight (kg) |
400 |
700 |
1200 |
1500 |
1700 |
2100 |
2500 |
|
Design pressure(Mpa) |
0.245
|
|
Design temperature(℃) |
139 |
