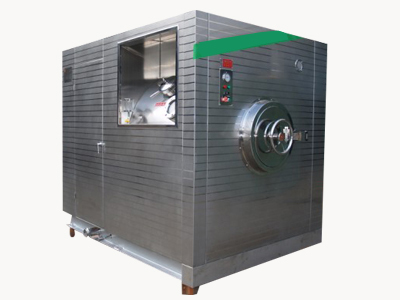

Rubber Stopper Cleaner

Applicable range and process Cleaning, silicification, sterilization and reheating vacuum drying (KJQS type cleaning machine): It carries out cleaning, silicification, sterilization and reheating vacuum drying in the same vessel, and is applicable to power injection, injection and freeze-dried rubber plugs, etc. Cleaning Barrel Cleaning barrel is a container of cleaning rubber plug. It is a sieve pore cylinder and connected with transmission shaft to wheel the cleaning lotion and mix the rubber plug. Its structure characteristics: (1) The ratio of rubber plug cubage and cleaning barrel cubage no larger than 35% (2) Reasonable punching diameter and density, good for dirt removal and barrel rigidity. (3) Ratio of cleaning barrel length and diameter no less than 1.2-1.5 (4) Interior screw mixing board to clean, mix and discharge, the big discharger avoids rubber plug damage. Cleaning case is a container of washing lotion. It is of multiple functions and complex structure. (1) The transmission support and cleaning case is rigidity connection. The connection center and cleaning case center must have a reasonable eccentric value to dip the rubber plug in the lotion. (2) The max. two-side overfall section guarantees the dirt removal. The water line should be figured out. (3) With cleaning device (4) Satisfy the installation requirement of water, air and wind nozzle. (5) Accord with GB150 container design and manufacture regulation (6) Good exterior heat preservation. III. Discharging Door (K series) The discharging door of cleaning machine is an important part. It has the following characteristics； (1) Easy open, simple operation, safe and stable, especially for female operators. (2) Large diameter, convenient for discharge (3) Safe and stable, good sealing, easy adjustment. IV. Stepless transmission system (1) Little cubage, large transmission ratio, stepless transmission, without noise (2) Self lock, stop in the exact place voluntarily, safe and stable. V. Reheating and cooling system (except DQXS) (1) It reheats or cools the cleaning case. (2) The circle-wind filtration and wind-block manometer has automatic temperature-control function. Technical parameter of KJQS cleaning machine Standard model KJ-1 KJ-2 KJ-3 KJ-4 KJ-6 KJ-8 KJ-10 KJ-12 KJ-20 Production capacity 10000 20000 30000 40000 60000 80000 100000 120000 200000 Cubage of cleaning cage (L) 100 250 280 400 600 800 950 1100 1800 Cubage of cleaning tank (L) 290 590 650 870 1220 1700 1960 2275 3135 Electrical heating power 9 9 13.5 13.5 13.5 18 18 21.6 36 Total power kw 16 17 23 26 26 27 27 35 48 Sterilization temperature ℃ 121 Vacuum pressure MPa ≤-0.090 L×w×h (mm) 1830X1360X1650 2000X 1530X 1950 2100X 1530X 1950 2350X 1530X 1950 2340X 1860X 2100 2680X 1860X 2100 2880X 1860X 2100 3080X 1960X 2100 3180X 2230X 2350 Net weight (kg) 1700 2000 2200 2500 2800 3000 3400 3800 5000
