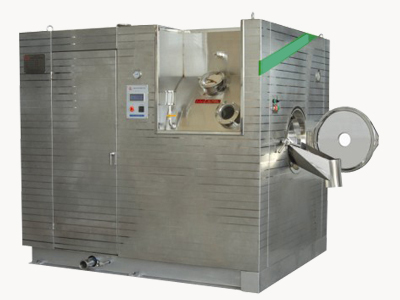

Rubber Stopper Cleaner

DQXT Serial Large Transfusion Cleaning Machines

It carries out cleaning, silicification and vacuum drying in the same vessel without sterilization function. It is applicable to various bottle corks for large transfusion. Main structure of Rubber Plug Cleaning Machine Cleaning barrel is a container of cleaning rubber plug. It is a sieve pore cylinder and connected with transmission shaft to wheel the cleaning lotion and mix the rubber plug. Its structure characteristics: (1) The ratio of rubber plug cubage and cleaning barrel cubage no larger than 35% (2) Reasonable punching diameter and density, good for dirt removal and barrel rigidity. (3) Ratio of cleaning barrel length and diameter no less than 1.2-1.5 (4) Interior screw mixing board to clean, mix and discharge, the big discharger avoids rubber plug damage. Cleaning Case Cleaning case is a container of washing lotion. It is of multiple functions and complex structure. (1) The transmission support and cleaning case is rigidity connection. The connection center and cleaning case center must have a reasonable eccentric value to dip the rubber plug in the lotion. (2) The max. two-side overfall section guarantees the dirt removal. The water line should be figured out. (3) With cleaning device (4) Good for ultrasonic installation, direction and space. (5) Satisfy the installation requirement of water, air and wind nozzle. (6) Accord with GB150 container design and manufacture regulation (7) Good exterior heat preservation. IV. Stepless transmission system little cubage, large transmission ratio, stepless transmission, without noise Self lock, stop in the exact place voluntarily, safe and stable. V. Reheating and cooling system (1) It reheats or cools the cleaning case. (2) The circle-wind filtration and wind-block manometer has automatic temperature-control function. Technical Features and Advantages of Rubber Plug Cleaning Machine Wenzhou Yaguang Company is one of the earliest producers of rubber plug cleaning machines in China with large user group and the highest market share (60-70% domestic occupancy), it is also the compiler unit of the industry standard of this product. Its equipment conforms to GMP and FDA requirements. It has strong technical force, advanced equipment and technology, and is very experienced in commissioning and maintenance of equipment. Its equipment adopts many advanced cleaning technologies with reasonable structure and excellent performance. (patent) Bionic large caliber discharge door, prevents the discharging plug from scraping in moderate temperature extrusion and friction. (patent) The cleaning tank adopts multifunctional special construction and achieves positive and negative pressure technological requirements and the control of heating, vacuum, automatic air/water feeding and discharging, etc. The cleaning drum is with flexible structure with arm rest and float bearing, which guarantees large cleaning machine in safe and steady running. Transmission shaft sealing construction adopts good materials and performs sound.   The cleaning fluid in the cleaning tank is pumped by Denmark GRUNDFOS water pump and sprayed after two-stage cycling filtration, which makes the cleaning fluid always in clean state and reduces the water consumption. Vacuum drying and reheating vacuum drying technology achieves the moisture in rubber plug at a percentage of 0.5‰, better than the GMP requirement 1‰. Superior performance of equipment in safety interlocking and malfunction alarm. Annual batch process capacity of 150 sets of equipment Non-standard design is available to well meet customer requirements. Basic Technical Parameters of DQXT Serial Large Transfusion Cleaning Machines Standard model DQXT-４ DQXT-６ DQXT-８ DQXT-１０ DQXT-１２ DQXT-２０ Production capacity 20000 30000 40000 60000 80000 100000 Cubage of cleaning cage (L) 380 585 740 955 1080 1700 Cubage of cleaning tank (L) 850 1210 1570 1860 2190 3025 Electrical heating power 13.5 13.5 18 18 21.6 36 Total power kw 23 24 28.5 29 33 50 Vacuum pressure MPa ≤-0.090 L×w×h (mm) 2350X1530X1950 2340X1860X2100 2620X1860X2100 2880X1860 X2100 3080X1960 X2100 3180X2230 X2350 Net weight (kg) 2200 2600 2800 3000 3200 4000
