Rubber Stopper Cleaner

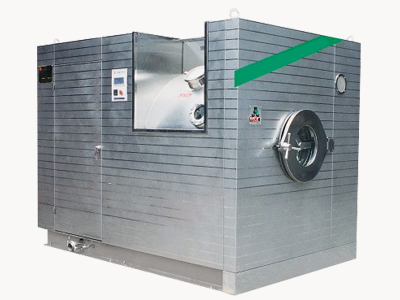

DQXL aluminum cover cleaning machine

description:

It carries out cleaning and drying in the same vessel and is applicable to aluminum covers, oral liquid aluminum-plastic covers. Rubber Plug Cleaning Machine Cleaning barrel is a container of cleaning rubber plug. It is a sieve pore cylinder and connected with transmission shaft to wheel the cleaning lotion and mix the rubber plug. Its structure characteristics: (1) The ratio of rubber plug cubage and cleaning barrel cubage no larger than 35% (2) Reasonable punching diameter and density, good for dirt removal and barrel rigidity. (3) Ratio of cleaning barrel length and diameter no less than 1.2-1.5 (4) Interior screw mixing board to clean, mix and discharge, the big discharger avoids rubber plug damage. Cleaning Case Cleaning case is a container of washing lotion. It is of multiple functions and complex structure. (1) The transmission support and cleaning case is rigidity connection. The connection center and cleaning case center must have a reasonable eccentric value to dip the rubber plug in the lotion. (2) The max. two-side overfall section guarantees the dirt removal. The water line should be figured out. (3) With cleaning device (4) Satisfy the installation requirement of water, air and wind nozzle. (5) Accord with GB150 container design and manufacture regulation (6) Good exterior heat preservation. III. Stepless transmission system little cubage, large transmission ratio, stepless transmission, without noise Self lock, stop in the exact place voluntarily, safe and stable. Technical Features and Advantages of Rubber Plug Cleaning Machine Wenzhou Yaguang Company is one of the earliest producers of rubber plug cleaning machines in China with large user group and the highest market share (60-70% domestic occupancy), it is also the compiler unit of the industry standard of this product. Its equipment conforms to GMP and FDA requirements. It has strong technical force, advanced equipment and technology, and is very experienced in commissioning and maintenance of equipment. Its equipment adopts many advanced cleaning technologies with reasonable structure and excellent performance. (patent) Bionic large caliber discharge door, prevents the discharging plug from scraping in moderate temperature extrusion and friction. (patent) The cleaning tank adopts multifunctional special construction and achieves positive and negative pressure technological requirements and the control of heating, vacuum, automatic air/water feeding and discharging, etc. The cleaning drum is with flexible structure with arm rest and float bearing, which guarantees large cleaning machine in safe and steady running. Transmission shaft sealing construction adopts good materials and performs sound.   The cleaning fluid in the cleaning tank is pumped by Denmark GRUNDFOS water pump and sprayed after two-stage cycling filtration, which makes the cleaning fluid always in clean state and reduces the water consumption. Vacuum drying and reheating vacuum drying technology achieves the moisture in rubber plug at a percentage of 0.5‰, better than the GMP requirement 1‰. Superior performance of equipment in safety interlocking and malfunction alarm. Annual batch process capacity of 150 sets of equipment Non-standard design is available to well meet customer requirem Basic Technical Parameters of DQXL Serial Aluminum Cover Cleaning Machines Standard model DQXL-2 DQXL-4 DQXL-6 DQXL-8 DQXL-10 DQXL-12 DQXL-20 Production capacity 20000 40000 60000 80000 100000 120000 200000 Cubage of cleaning cage (L) 280 355 580 720 865 1050 1700 Cubage of cleaning tank (L) 632 755 1200 1465 1780 2070 3020 Electrical heating power 13.5 18 18 18 18 21.6 36 Total power kw 17 22 22 23 25 28 42 L×w×h (mm) 1920X1470X1800 2150X1470X1800 2250X1860X2100 2450X1860X2100 2700X1860X2100 2950X1900X2100 3130X2180X2300 Net weight (kg) 1500 1800 2000 2200 2400 2600 3800
