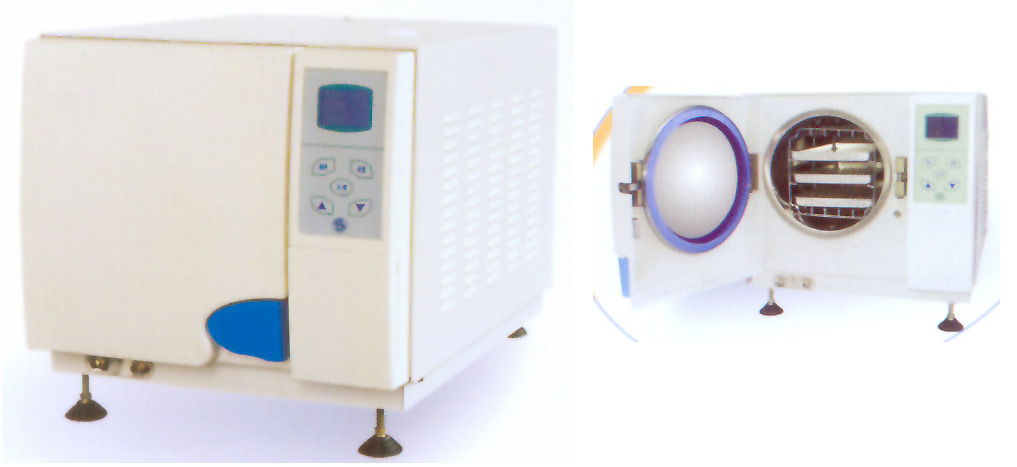

Class S Table Top Pulsation Steam Vacuum Sterilizer
Main Features:
●Microcomputer control, touch screen;
●LCD dynamically display sterilizing process, temperature, pressure and time;
●With instruments, instruments bags, dressings, rubber and other sterilization procedures
for customized optional;
●With Bowie & Dick leaking and vacuum testing procedures;
●Three times pulsant vacuum: Vcuum up to -0.08MPa (-0.8Bar), to ensure the efficient removal of dressings, sterilization bag, and the air gap of dental handpieces, to achieve optimum steam saturation;
●Pulsation after vacuum drying system with strong thermal cooling apparatus, have best drying effects;
●Automatic electronic security door locks: Automatic warning and auto-lock in malfunction and power failure conditions;
●0.22μm HEPA filter can ensure the vacuum steam is amicrobic, to avoid further contamination;
●Self-check and LCD display malfunctiion;
●Beep reminding when finishing sterilizing.
Safety Protection:
●Over-temperature protection: Over the setting temperature, system automatically cut off power;
●Anti-dry alarm: Below the water level, automatically cut off heating power and display alarm information;
●Door safety interlock devices: Adopt electronic door lock, only the doors closed in place, sterilizers to start working procedures, connected the heating power. If there is pressure in the chamber, or the power is failed, the electronic door will lock the door handle, the door can not be opened;
●Automatic releasing pressure safety valve: Over setting pressure, pressure releasing valve will open；
● Electronic circuit safety devices: AC main circuit with a short-circuit protection, over-voltage DC control circuits with overload protection.
Main Technical Parameters:
Designed Pressure: -0.1/0.28MPa Max. Working Pressure: 0.23MPa
Ultimate vacuum:-0.08MPa Pressure Precision:±1KPa
Sterilization Temperature Range: 105℃~136℃
Temperature Precision: ±0.1℃
Temperature uniformity: ㄑ±0.5℃
Chamber Material: SUS304 stainless steel
|
