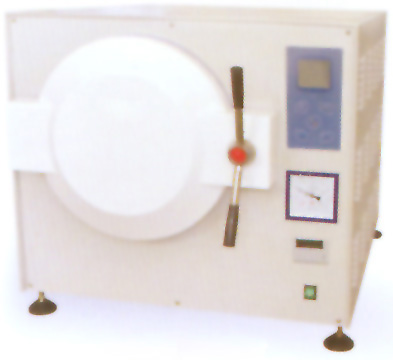

TMQ.CV Series Table Top Pulsation Steam Vacuum Sterilizer
Main Features:
●Microcomputer control, LCD touch screen;
●Affusion, pulse vacuum, heating, sterilizing, exhaust, vacuum drying the whole process are automatically controlled by program;
●Three times pulsant vacuum: Vcuum up to -0.08MPa, to ensure the efficient exhausting steam of medical dressings, Class A hollow lumen instruments;
●High-performance built-in steam generator and steam-water separator devices, ensure quality steam and without external steam source;
●Pulsation behind vacuum drying system to ensure parcels dry .
●With instruments, instruments bags, dressings, rubber and other sterilization procedures for user's optional;
●With Bowie & Dick and vacuum testing procedures;
●0.22μm HEPA filter can ensure the vacuum steam is amicrobic, to avoid further contamination;
●Dynamically digital display temperature, pressure and time; Text display process status and malfunction alarm;
●Mini printer is optional to real-time record the whole sterilizing process and malfunction informations;
●Beep reminding when finishing sterilization process and malfunction.
Safety Protection:
●Over-temperature protection: Over the setting temperature, system automatically cut off power and display alarm;
●Door safety interlock devices: only the doors closed in place, sterilizers to start working procedures. If there is dangerous pressure in the chamber, the door can not be opened;
●Dual overpressure protection: Automatic releasing safety valve. If pressure is over designed , safety valve will open to release; Overpressure automatic protection control. If pressure is over setting, safety valve will automatic release and display alarm;
●Anti-dry alarm: below the water level, automatically cut off the heating power and display alarm information;
● Electronic circuit safety devices: AC main circuit with a short-circuit protection, over-voltage DC control circuits with overload protection.
Main Technical Parameters:
Designed Pressure: -0.1/0.28MPa Max. Working Pressure: 0.23MPa
Pressure Precision: ±1KPa
Sterilization Temperature Range: 105℃~136℃
Temperature Display Precision: ± 0.1℃
Temperature uniformity: ㄑ±0.5℃
Chamber Material: SUS304 stainless steel
|
