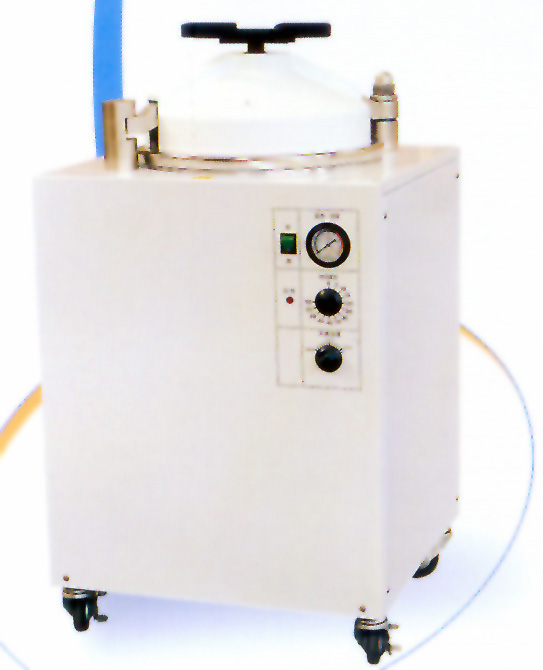

LMQ.J Series Vertical Autoclave
Main Features:
●Heating and sterilizing process are automatically controlled. Imported pressure switch controls sterilizing pressure;
●Friendly user-defined options for different items sterilization temperature;
●Indicator light indicate work status. Automatically stop heating when finishing sterilization;
●Level of sliding door, self-up-style gasket, so operation is simple and safe;
Safety Protection:
●Over-temperature protection: Over setting temperature, system automatically cut off power;
●Door safety interlock devices: In line with 《Pressure Vessel Safety technical monitoring procedures》requirements. Only the door closed in place, sterilizers to start to connect heating power to work. If there is pressure in the chamber, the door can not be opened;
●Automatic releasing pressure safety valve: When overpressure, pressure releasing valve will open;
●Thermal Protection and Insulation Door Cover: high-performance thermal insulation door cover, beautiful and prevented operator from scald;
●Electronic circuit safety devices: AC main circuit with short circuit protection.
Main Technical Parameters:
Designed Pressure: 0.28MPa
Desinged Temperature: 150℃
Max. Working Pressure: 0.23MPa
Sterilizing Temperature Range: 105~134℃
Sterilizing Time Range: 0~60min
Chamber Material: SUS304 stainless steel
Accessories: 2 PC stainless steel baskets
Vertical Pressure Steam Autoclaves
