 Vertical Steam Autoclaves 50L |
|
CLASS N-LMQ.J 3260C 50L
 |
|

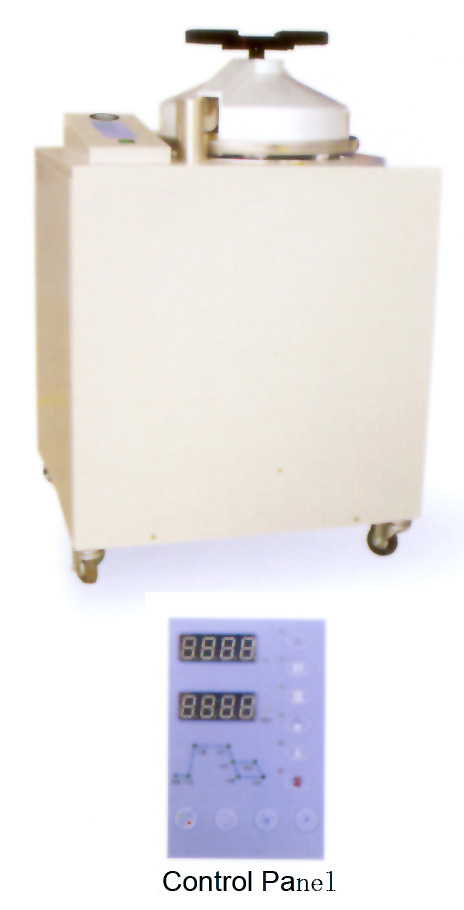

LMQ.J Series Vertical Autoclave
Application:
With pressure steam as medium, it is suitable to sterilizing instruments, dressing, rubber, liquid, glassware, culture medium and waste in the operating room, clinical laboratory , biological laboratories, CSSD, colleges and universities, Disease Control Center, etc. all levels of healthcare sectors and biomedical research institutes.
Main Features:
●Microcomputer control technology, touch screen;
●With instruments, instruments bags, dressing, rubber, liquid, etc. sterilization procedures for user's optional;
●Dynamic pulse with a positive-pressure exhaust functions, completely exhausting cold air in the cavity, to ensure the steam saturation;
●Heating, sterilizing, exhaust are automatically controlled by program. Convenient and flexible operation;
●Sterilization process is dynamic curves showed, LED digital display cavity temperature, time, alarm and fault code;
●Beep reminding when end and cut off the power automatically;
●Level of sliding door, self-up-style gasket, seal reliable, so operation is simple.
Safety Protection:
●Over-temperature protection: Over the setting temperature, system automatically cut off power and malfunction alarm;
●Door safety interlock devices: Only the door closed in place, sterilizers to start to connect heating power to work. If there is pressure in the chamber, door can not be opened;
●Automatic releasing pressure safety valve: Reaching safety valve opening pressure, pressure releasing valve automatically opens to ensure safety;
●Thermal Protection and Insulation Door Cover: high-performance thermal insulation door cover, beautiful and prevented operator from scald;
● Electronic circuit safety devices: AC main circuit with a short-circuit protection, over-voltage DC control circuits with overload protection.
Main Technical Parameters:
Designed Pressure: 0.28MPa
Max. Working Pressure: 0.23MPa
Designed Temperature:150℃
Temperature Selective Range: 105℃~136℃
Insulation Temperature: 40.0℃~60.0℃
Temperature Display Precision: ±0.1℃
Timing Range:0~99 h 99 min
Chamber Material: SUS304 stainless steel
Basic Accessory: 2 PCS stainless steel baskets
|
|
The product information will probably be updated without notice, if that happens, please refer to the latest technical material. |
|
  |
|
|
