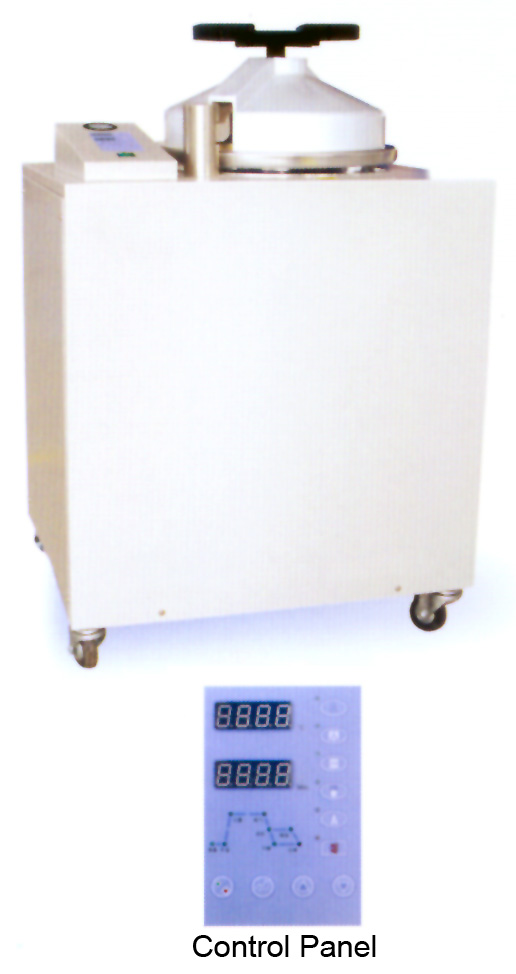

LMQ.C Series Full-automatic Vertical Sterilizer
Main Features:
●Microcomputer control, touch screen;
●Infusion water, heating, sterilizing, exhaust, drying, etc. the whole process are automatically control;
●With instruments, instruments bags, dressings, rubber, liquid and other sterilization procedures for user's optional;
●Dissolution culture medium (sterilization) insulation function;
●Dynamic pulse with a positive-pressure exhaust functions, completely exhausting cold air in the cavity, to ensure the steam saturation;
●With automatical fast and slow exhaust control functions, to prevent overflow of liquid when the liquid is sterilizing;
●Sterilization process is dynamic curves showed, LED digital display cavity temperature, time, alarm and fault code;
●Beep reminding when end;
●With preheat control, delay start function;
●Built-in water tank, steam internal recycling, no efflux steam. Dry and clean environment;
●Level of sliding door, self-up-style gasket, so operation is simple and safe.
Safety Protection:
●Over-temperature protection: over the setting temperature, the system automatically cut off the power;
●Anti-dry alarm: below the water level, automatically cut off the heating power;
●Door safety interlock devices: Only the doors closed in place, sterilizers start to connect heating power to work. If there is pressure in the chamber, the door can not be opened;
●Automatic releasing pressure safety valve: when overpressure, pressure releasing valve will open;
●Thermal Protection and Insulation Door Cover: high-performance thermal insulation door cover, beautiful and prevented operator from scald;
● Electronic circuit safety devices: AC main circuit with a short-circuit protection, over-voltage DC control circuits with overload protection.
Main Technical Parameters:
Designed Pressure: 0.28MPa
Max. Working Pressure: 0.23MPa
Designed Temperature:150℃
Temperature Selective Range: 105℃~136℃
Insulation Temperature: 40.0℃~60.0℃
Temperature Display Precision:0.1℃
Timing Range:0~99 h 99 min
Chamber Material: SUS304 stainless steel
Basic Accessory: 2 PCS stainless steel baskets
|
