     Vertical Steam Autoclaves    100L
CLASS N-LMQ.C 3885J 100L

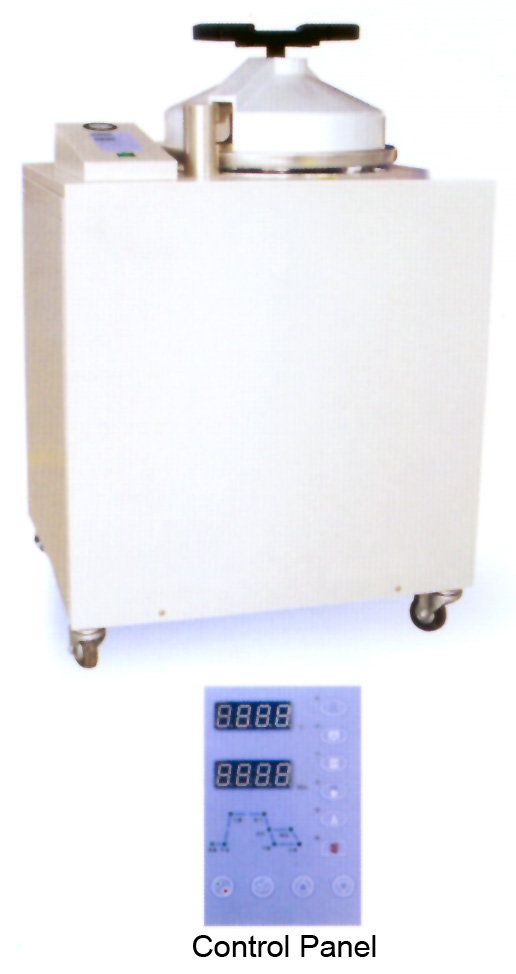

LMQ.C Series Full-automatic Vertical Sterilizer

Main Features:

●Microcomputer control, touch screen;

Infusion water, heating, sterilizing, exhaust, drying, etc. the whole process are automatically control;

With instruments, instruments bags, dressings, rubber, liquid and other sterilization procedures for user's optional;

●Dissolution culture medium (sterilization) insulation function;

Dynamic pulse with a positive-pressure exhaust functions, completely exhausting cold air in the cavity, to ensure the steam saturation;

●With automatical fast and slow exhaust control functions, to prevent overflow of liquid when the liquid is sterilizing;

Sterilization process is dynamic curves showed, LED digital display cavity temperature, time, alarm and fault code;

Beep reminding when end;

●With preheat control, delay start function;

●Built-in water tank, steam internal recycling, no efflux steam. Dry and clean environment;

●Level of sliding door, self-up-style gasket, so operation is simple and safe.



Safety Protection:

Over-temperature protection: over the setting temperature, the system automatically cut off the power;

Anti-dry alarm: below the water level, automatically cut off the heating power;

Door safety interlock devices: Only the doors closed in place, sterilizers start to connect heating power to work. If there is pressure in the chamber,  the door can not be opened;

Automatic releasing pressure safety valve: when overpressure, pressure releasing valve will open;

●Thermal Protection and Insulation Door Cover: high-performance thermal insulation door cover, beautiful and prevented operator from scald;

● Electronic circuit safety devices: AC main circuit with a short-circuit protection, over-voltage DC control circuits with overload protection.



Main Technical Parameters:

Designed Pressure: 0.28MPa

Max. Working Pressure: 0.23MPa

Designed Temperature:150

Temperature Selective Range: 105~136

Insulation Temperature: 40.0~60.0

Temperature Display Precision:0.1

Timing Range:0~99 h 99 min

Chamber Material: SUS304 stainless steel

Basic Accessory: 2 PCS stainless steel baskets



The product information will probably be updated without notice, if that happens, please refer to the latest technical material.
