Main Features:
●Microcomputer control, touch screen, LCD menu display;
●Infusion water, pulse vacuum, heating, sterilizing, vacuum drying the whole process are automatically controlled by program. Malfunction alarm automatic display;
●With instruments, dressing, rubber, culture medium and user-defined sterilization procedures for user's optional;
●With pre-vacuum, temperature regularly emptied, dynamic pulse positive pressure, etc. many other means completely exhaust the cold air in the sterilization room, to ensure the steam saturation;
●With automatic fast and slow exhaust control functions, with the temperature, pressure interlock control to prevent liquid overflow;
●Beep reminding when end;
●With preheat control, delay start function;
●0.22μm HEPA filter can ensure the vacuum steam is amicrobic, to avoid further contamination;
●With Bowie & Dick and vacuum testing procedures;
●With the thermal insulation function. Demand is fast and convenient in the insulating process;
●Level of sliding door, self-up-style gasket, so operation is simple and safe;
●Mini printer is optional.
Safety Protection:
●Over-temperature protection: Over the setting temperature, system automatically cut offpower;
●Anti-dry alarm: When below the lowest water level, automatically cut off heating power;
●Door position detection devices: Door opened during operation, system automatically cut off heating power;
●Door safety interlock devices: Only the doors closed in place, sterilizers start to connect heating power to work. If there is pressure in the chamber, door can not be opened;
●Automatic releasing pressure safety valve: when overpressure, pressure releasing valve will open;
●Specific temperature, pressure interlock control, to ensure the safety of operators and sterilization items;
●Thermal Protection and Insulation Door Cover: high-performance thermal insulation door cover, beautiful and prevented operator from scald;
● Electronic circuit safety devices: AC main circuit with a short-circuit protection, over-voltage DC control circuits with overload protection.
●With sensor break detection function.
Main Technical Parameters:
Designed Pressure: -0.1/0.28MPa Max. Working Pressure: 0.23MPa
Pressure Display Range: -0.1~0.3MPa
Designed Temperature:150℃ Temperature Selective Range: 105℃~136℃
Temperature Display Precision: 0.1℃ Solution Temperature : 60~100℃(Changeable)
Insulation Temperature : 40~60℃(Changeable)
Timing Range: 0~99h 59min
Vacuum Degree:ㄑ-80KPa
Chamber Material: SUS304 stainless steel
Accessory: 2 PCS stainless steel baskets

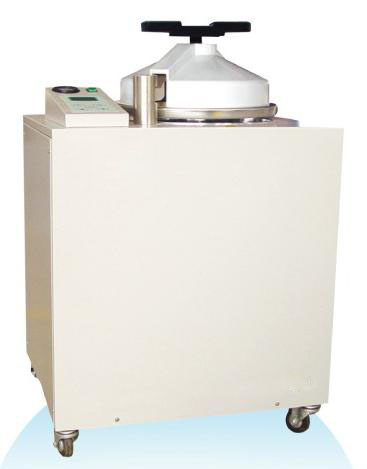

Vertical Pressure Steam Autoclaves
