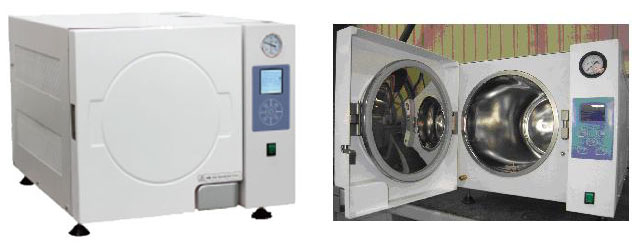

CLASS B-TMQ.CV-3250 45L (MANUAL DOOR) Tabletop Vacuum Steam Autoclave
1. Description
Authorized the certificates of ISO9001 and EN46001
European CE certificate
A small size autoclave of Class-B with rapid function by means of high temperature pressure steam in accordance with the latest international standard prEN13060
TMQ.CV-3250 model is fully automatic, suitable for treatment to low density materials as dressing, hollow instruments as dental drillers of low and high speed and etc in operating rooms, department of stomatology and ophthalmology, laboratory biological research and medical institutions.
Major capability and characteristics：
●Controlled by PLC with touch keys.
●The built-in imported vacuum pump capable of exhausting air thoroughly from dressings, loading bags and the hollow dental drillers with a vacuum degree of ?0.09Mpa.
●The high penetration of the steam ensures a complete sterilization.
●The post vacuum drying system providing a ?0.095Mpa degree of vacuum with a residue humidity of no more than 0.2% after drying.
●Equipped with B/D test program, vacuum test program, vacuum leakage proportion less than 0.133Kpa/min.
●0.22μm air filter ensures sterile air in, preventing inside chamber from recontamination.
●Stages, temperature and time of processes displayed dynamically on the crystal screen also with failure indication system by self-checking.
●There are equipped with 4 sterilization programs for customer’s choice.
●The buzzer alarms when a cycle of operation is completed.
●Capable of killing HIV and HBS virus.
Safety devices：
●Auto protection device against over temperature：This system cuts off power automatically if the designed temperature is surpassed.
●Door safety interlock：The door cannot be opened until there is no pressure in the chamber and power for heating cannot be switched on until the door is firmly closed.
●Safety valve of auto release against overpressure：It opens when the designed pressure is surpassed.
●Electronic circuits safety device: direct current control loop and has protection against overload and voltage surpassed, alternating current main loop has short-circuit protection device.
Major technical parameters：
●Designed pressure： 0.28Mpa； Designed temperature： 150℃；
●Rated working pressure：0.22Mpa；
●Choice of sterilization temperature within：121℃~134℃, temperature equitability in the chamber ≤±0.5℃;
●Water source: Pure or distilled water
●Chamber make-up: SUS 304
●Standard allocation: 2 layers stainless steel trays
●Chamber size：Φ315×575 (mm) Valid capacity： 45 liters；
●Packing dimension: 990×775×620(mm) (L×W×H)
●Power source：220V 50Hz 3.1Kw
●Two layers of stainless steel trays
|
Items |
TMQ.CV-3250 |
|
Chamber Dimensions  X L (mm) |
315x575 |
|
Chamber Volume  X L (mm) |
45L |
|
Voltage(V) Freq.(Hz) |
220V 50Hz |
|
Current(A) Power(W) |
3.1kw |
|
Overall Dimensions (WxHxD) |
690 X 555 X 750 |
|
Autoclave Weight (Kg.) |
75 |
Configuration of TMQ.CV-3250 autoclave
|
No |
Name |
Type |
Manufacturer |
Technical explanation |
|
1 |
The main body |
TMQ.CV-3250 |
OUR COMPANY |
Made of 304 stainless steel and welded by means of argon arc and polished electrically on the surface |
|
2 |
Airproof door |
TMQ.CV-3250 |
OUR COMPANY |
Made of 304 stainless steel and a polished mirror surface, easy for operation |
|
3 |
Programmable controller |
CPMA2-30CDR-V1 |
OMRONG, Japan |
Reliable and durable |
|
4 |
LCD |
MPT002-G4P-V1 |
OMRONG, Japan |
Displaying operational condition, temperature, time and error; for program choice and parameter setting |
|
5 |
Analog conversion module |
CP1A-AS001 |
OMRONG, Japan |
Analog quantity processing for temperature |
|
6 |
Output expansion module |
CPM1A-20EDR1 |
OMRON, Japan |
For expansion of PLC output |
|
7 |
Contactor |
LC1D1210M5-N |
Schneider, Germany |
Executing heating performance, reliable and durable |
|
8 |
Thermostat |
ZA210C-553-1 |
Tongbao, Guangdong |
Temperature on the chamber controlled within ±5℃ |
|
9 |
Electromagnetic valve |
PM146.3ABV |
SMC, Japan |
Reliable and durable against 180℃ |
|
10 |
Jiggle switch |
PM146.3ABV |
Parker, US |
Durable and reliable |
|
11 |
Heater |
220V 600W |
OUR COMPANY |
Efficient with working life over 5000 hours |
|
12 |
Vacuum pump |
2BV3151-0GW02-1E |
nash-elmo, Germany |
Pumping speed: 150L/Min；Ultimate vacuum:33mBar。 |
|
13 |
Pressure transmitter |
ISE40 |
SMC, Japan |
Reliable, output in switching value |
|
14 |
Metering pump |
E508HP |
CEME, Italy |
Reliable and durable for control of water entry to steam generator |
|
15 |
Flow switch |
DW-K-1/4 |
HENKESASS, Germany |
Reliable and durable |
|
