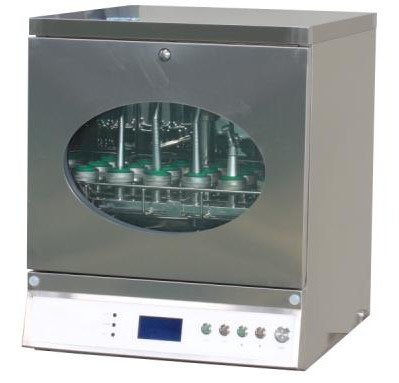

YFQ3 50L Automatic Washer disinfector is a new fully automatic washer disinfector. It is controlled by microcomputer. It is mainly used in washing dental hand-pieces & other dental instruments. This equipment is exquisitely made and is in a brand new structure. It is easy to use and has a reliable performance.

Parameters:

Dimensions of the washing chamber(L×WxH)mm: 378x378x350

External dimension(L×WxH)mm: 440x515x525

Dimensions of the dental hand-piece washing rack(L×WxH)mm: 363x363x214

Dimensions of the equipment cleaning basket(L×WxH)mm: 332x127x44

Weight:                         40kg

Structure form:                   desk-top

Water consumption:             12L/circulation

Water heating method:           electric heating

Electricity consumption:          1.2Kw/h

Water outlet:                     Ф20mm

Gas exhaust vent:                 Ф20mm

Hot water processing temperature:     93℃

Water source pressure:        0.2～0.5Mpa   purified or distilled water

Water source connector:        1/2?external thread

Power source:               220V, 50Hz, 3.5Kw

Using environment:

Ambient temperature: 5-40℃    Relative humidity: ≤90% at 20℃

----------------------------------------------------------------------------------------------------------------------------------------

The product information will probably be updated without notice, if that happens, please refer to the latest technical material.
