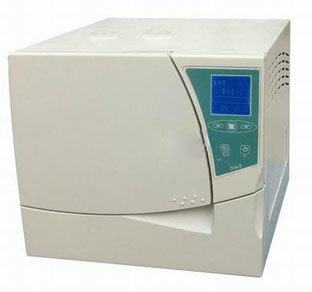

CLASS B-YF-17L Rapid Steam Sterilizer

Details:

The Rapid Steam Sterilizer conforms to EN13060 standard and YY0646-2008 degree B standard. It is used for the sterilization and drying of packed or unpacked solid appliances, class A hollow appliances (such as dental hand-piece and endoscope), and rubber.

Features:

●Micro-computer control, wide LCD, touch buttons;

●High-speed: only 12 to 15 minutes’ time spending for the whole process, including pulse vacuum heating-up sterilizing and vacuum drying;

●Rectangular sterilizing chamber, utilized space being 25% more than that of circular shape;

●With the patent techniques of frequency conversion temperature-control, the sterilizer heats up quickly and controls the temperature accurately meanwhile saving energy efficiently;

●The operation is safe, simple and reliable with the automatic door-lock system which makes the safety both mechanically and electronically insured;

●Three-phase pulse vacuum makes the vacuum purity up to -90Ka，ensuring the residual air in the seam of class A hollow appliances (such as dental handpiece and endoscope) be removed efficiently and the high-temperature steam penetrates and reaches to every part；

●Powerful intellective pulse vacuum drying function ensures the residual humidity of dried appliances be no more than 0.2%, and that of dressing 1%;

●Besides sterilizing, it has the function of making medical cotton;

●It has the testing programs of Helix, B-D and vacuum, and the vacuum leakage rate is less than 0.13Kpa/min (it receives the tests via PCD progress of the lumen) ;

●With the rapid steam generator and the steam-water separator built in, the quality of the steam can be guaranteed, and therefore no external steam source is needed;

●The well-performed 0.22μm air disinfector and filter makes the air that destroys the vacuum state sterile, avoiding re-contamination;

●With double tanks installed, the clean and the dirty are separated, contamination caused by inner toxin thus being avoided;

●With the micro-printer and a can-be-matched USB interface, the sterilizing process can be recorded.

Main imported components:

   ※ Korea G & M vacuum pump

   ※ Japan SMC solenoid valve

   ※ Switzerland HUBA pressure sensor

Safety devices:

   ※ Automatic over-temperature protection device

   ※ Excess-pressure protection device

   ※ Door safety interlock device

   ※ Short-circuit protection device

   ※ Over-pressure protection device

 --------------------------------------------------------------------------------------------------------

We reserve the right to make changes to these specifications without prior notice.
