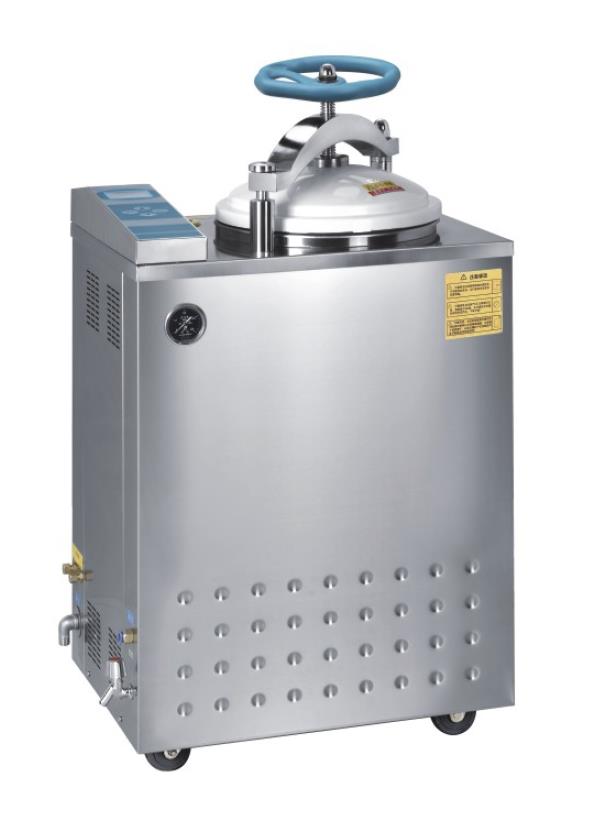

35L Vertical Cylindrical-type Fully Automatic Pressure Steam Sterilizer (LCD Display)
Use
The vertical cylindrical pressure steam sterilizer is installed with an electrical heater, an automatically pressure-temperature controller, a safety valve, a releasing valve, a pressure-temperature indicator, an alarm bell for finished sterilization and an instrument to automatically cut off the power of heater. It has the advantages of effective sterilization, convenient operation, safe, less electro city consuming and cheap. It is ideal equipment for clinics, scientific research institutes and other organizations to sterilize surgical instrument, fabrics, glasses, culture media, etc.
Features
♦ Fully stainless steel structure.

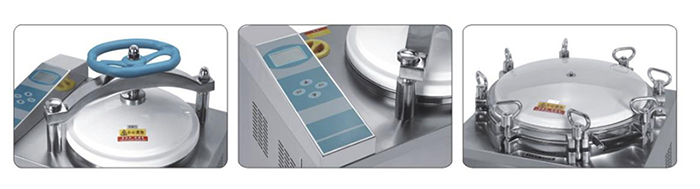

♦ Hand wheel type of quick-open door structure.
♦ Door safety lock system.
♦ Automatically controlled by computer.
♦ LCD display of working status, touch type key.
♦ Over temperature & over pressure auto-protection.
♦ The internal steam/water circulation system is equipped with an exhaust cooling system, which avoids the generation of aerosols, and does not discharges team to the outside. Therefore, the working environment is clean and dry.
♦ Self-inflating type seal.
♦ Safe protection of water lacking.
♦ Automatically shut off with beep reminding after sterilization.
♦ With two stainless steel sterilizing baskets.
♦ A high-efficiency filter is added to the exhaust to ensure the safety of the environment and operators
♦ Optional drying system.
Technical Data
| Technical Data / Model |
YF-LS-35HG |
YF-LS-50HG |
YF-LS-75HG |
YF-LS-100HG |
| Chamber volume (mm) |
35L φ318×450 |
50L φ340×550 |
75L φ400×600 |
100L φ440×650 |
| Working pressure |
0.22MPa |
| Working temperature |
134¡æ |
| Max working pressure |
0.23Mpa |
| Heat average |
≤±1¡æ |
| Timer range |
0¡«99min or 0¡«99hour59 min |
| Temperature adjust range |
0¡«134¡æ |
| Power |
1X2.5KW/AC220V 50Hz |
2X1.5KW /AC220V.50Hz |
3X1.5KW /AC220V 50Hz |
| Overall dimension (mm) |
470×450×1020 |
710×465×1150 |
750×510×1250 |
750×510×1250 |
| Transport dimension (mm) |
710×490×1130 |
740×550×1280 |
780×600×1380 |
780×600×1380 |
| G.W/N.W. (kg) |
104/ 85 |
122/ 99 |
146/ 120 |
148/ 122 |
|
