     Vertical Steam Autoclaves    50L
YF-50LJ

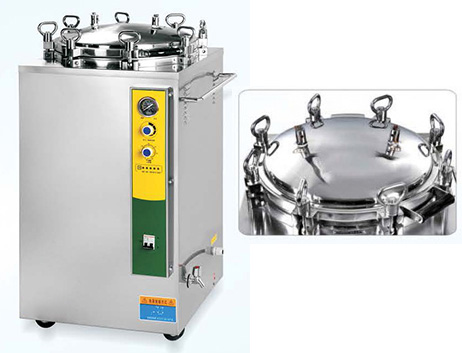

50L Vertical Cylindrical Pressure Steam Sterilizer (Digital Display Automatic)

Use

The vertical cylindrical pressure steam sterilizer is installed with an electrical heater, an automatically pressure-temperature controller, a safety valve, a releasing valve, a pressure-temeperature indicator, an alarm bell for finished sterilization and an instrument to automatically cut off the power of heater. It has the advantage of effective sterilization, convenient operation, safe, less electricity consuming and cheap. It is ideal equipment for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media, etc.

Characteristics

¡ñFully stainless steel structure
¡ñIndicator light indicates working state
¡ñOver temperature&over pressure auto-protection
¡ñDouble scale indication pressure gauge
¡ñSafe protection of water lacking
¡ñAutomatically shut off with beep reminding after sterilization
¡ñEasy to operate,safe and reliable
¡ñWith two stainless steel sterilizing baskets

Technical Data

Technical data YF-35LJ YF-50LJ YF-75LJ YF-100LJ YF-120LJ YF-150LJ
Chamber volume 35L(φ318×450) mm 50L( φ340×550) mm 75L(φ400×600) mm 100L(φ440×650) mm 120L(φ480×660) mm 150L(φ510×740) mm
 working pressure 0.22MPa
Working temperature 134¡æ
Max working pressure 0.23 Mpa
Heat average ≤±1¡æ
Timer scope 0¡«60min
Temperature scope 105¡«134¡æ
Power 2.5Kw/AC220V.50Hz 3Kw /AC220V.50Hz 4.5Kw /AC220V.50Hz 6Kw /AC220V.50Hz
Overall dimension 480×460×850(mm) 520×520×980(mm) 560×560×980(mm) 590×590×1080(mm) 600×640×1140(mm) 670×690×1130(mm)
Transport dimension 570×550×970(mm) 590×590×1110(mm) 650×630×1150(mm) 680×650×1220(mm) 730×730×1270(mm) 760×760×1270(mm)
G.W/N.W 56Kg/ 42Kg 68Kg/ 50Kg 90Kg/70Kg 105Kg/85K 125Kg/100Kg 135Kg/110Kg
The product information will probably be updated without notice, if that happens, please refer to the latest technical material.
