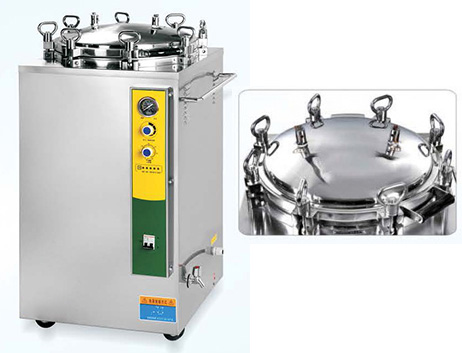

The vertical cylindrical pressure steam sterilizer is installed with an electrical heater, an automatically pressure-temperature controller, a safety valve, a releasing valve, a pressure-temeperature indicator, an alarm bell for finished sterilization and an instrument to automatically cut off the power of heater. It has the advantage of effective sterilization, convenient operation, safe, less electricity consuming and cheap. It is ideal equipment for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media, etc.





●Fully stainless steel structure

●Indicator light indicates working state

●Over temperature&over pressure auto-protection

●Double scale indication pressure gauge

●Safe protection of water lacking

●Automatically shut off with beep reminding after sterilization

●Easy to operate,safe and reliable

●With two stainless steel sterilizing baskets





Technical data	YF-35LJ	YF-50LJ	YF-75LJ	YF-100LJ	YF-120LJ	YF-150LJ
Chamber volume	35L(φ318×450) mm	50L( φ340×550) mm	75L(φ400×600) mm	100L(φ440×650) mm	120L(φ480×660) mm	150L(φ510×740) mm
working pressure	0.22MPa
Working temperature	134℃
Max working pressure	0.23 Mpa
Heat average	≤±1℃
Timer scope	0～60min
Temperature scope	105～134℃
Power	2.5Kw/AC220V.50Hz	3Kw /AC220V.50Hz	4.5Kw /AC220V.50Hz		6Kw /AC220V.50Hz
Overall dimension	480×460×850(mm)	520×520×980(mm)	560×560×980(mm)	590×590×1080(mm)	600×640×1140(mm)	670×690×1130(mm)
Transport dimension	570×550×970(mm)	590×590×1110(mm)	650×630×1150(mm)	680×650×1220(mm)	730×730×1270(mm)	760×760×1270(mm)
G.W/N.W	56Kg/ 42Kg	68Kg/ 50Kg	90Kg/70Kg	105Kg/85K	125Kg/100Kg	135Kg/110Kg
