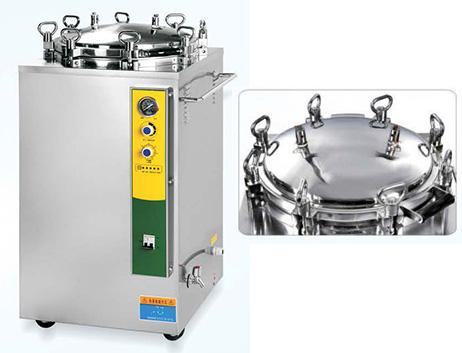

150L Vertical Cylindrical Pressure Steam Sterilizer (Digital Display Automatic)
Use
The vertical cylindrical pressure steam sterilizer is installed with an electrical heater, an automatically pressure-temperature controller, a safety valve, a releasing valve, a pressure-temeperature indicator, an alarm bell for finished sterilization and an instrument to automatically cut off the power of heater. It has the advantage of effective sterilization, convenient operation, safe, less electricity consuming and cheap. It is ideal equipment for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media, etc.
Characteristics
¡ñIndicator light indicates working state
¡ñ Over-temperature & over-pressure auto-protection device
¡ñ Double scale indication pressure gauge
¡ñ Safe protection of water lacking
¡ñ With the below exhaust structure,which is convenient to exhaust the cold air
¡ñ Automatically shut off with beep reminding after sterilization
¡ñ Fully stainless steel structure
¡ñ Easy to operate,safe and reliable
¡ñ With two stainless steel sterilizing baskets
Technical Data
| Technical data |
YF-35LJ |
YF-50LJ |
YF-75LJ |
YF-100LJ |
YF-120LJ |
YF-150LJ |
| Chamber volume |
35L(φ318×450) mm |
50L( φ340×550) mm |
75L(φ400×600) mm |
100L(φ440×650) mm |
120L(φ480×660) mm |
150L(φ510×740) mm |
| working pressure |
0.22MPa |
| Working temperature |
134¡æ |
| Max working pressure |
0.23 Mpa |
| Heat average |
≤±1¡æ |
| Timer scope |
0¡«60min |
| Temperature scope |
105¡«134¡æ |
| Power |
2.5Kw/AC220V.50Hz |
3Kw /AC220V.50Hz |
4.5Kw /AC220V.50Hz |
6Kw /AC220V.50Hz |
| Overall dimension |
480×460×850(mm) |
520×520×980(mm) |
560×560×980(mm) |
590×590×1080(mm) |
600×640×1140(mm) |
670×690×1130(mm) |
| Transport dimension |
570×550×970(mm) |
590×590×1110(mm) |
650×630×1150(mm) |
680×650×1220(mm) |
730×730×1270(mm) |
760×760×1270(mm) |
| G.W/N.W |
56Kg/ 42Kg |
68Kg/ 50Kg |
90Kg/70Kg |
105Kg/85K |
125Kg/100Kg |
135Kg/110Kg |
|
