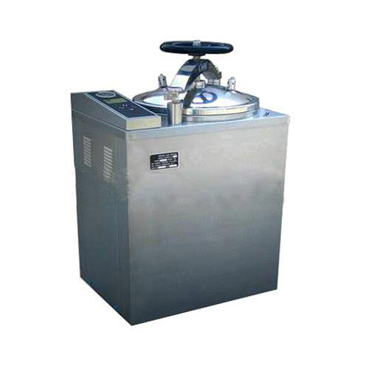

Vertical Pressure Steam Sterilizer
The vertical cylindrical pressure steam sterilizer is installed with an electrical heater, an automatically pressure-temperature controller, a safety valve, a releasing valve, a pressure-temeperature indicator, an alarm bell for finished sterilization and an instrument to automatically cut off the power of heater. It has the advantage of effective sterilization, convenient operation, safe, less electricity consuming and cheap. It is ideal equipment for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media, etc.
Characteristics:
¡ñ Fully stainless steel structure
¡ñ Hand wheel type of quick-open door structure
¡ñ Pressure safety lock
¡ñ Indicator light indicates working state
¡ñ Over temperature&over pressure auto-protection
¡ñ Double scale indication pressure gauge
¡ñ Self-inflating type seal
¡ñ Safe protection of water lacking
¡ñ Automatically shut off with beep reminding after sterilization
¡ñ Easy to operate,safe and reliable
¡ñ With two stainless steel sterilizing baskets
Technical Data:
| Technical data |
YF-B35L-III |
YF-B50L-III |
YF-B75L-III |
YF-B100L-III |
| Chamber volume |
35L(φ318×450)mm |
50L(φ340×550)mm |
75L(φ400×600)mm |
100L(φ440×650)mm |
| Working pressure |
0.22MPa |
0.14MPa |
| Working temperature |
134¡æ |
126¡æ |
| Max working pressure |
0.23MPa |
0.165MPa |
| Heat average |
≤±1¡æ |
| Timer |
0¡«60min |
| Adjustment of temperature |
105¡«134¡æ |
105¡«126¡æ |
| Power |
2.5KW/AC220V.50Hz |
3KW /AC220V.50Hz |
4.5KW /AC220V.50Hz |
| Overall dimension |
400×580×1000(mm) |
410×600×1030(mm) |
460×660×1110(mm) |
510×730×1220(mm) |
| Transport dimension |
730×500×1170(mm) |
730×500×1290(mm) |
760×550×1290(mm) |
820×600×1380(mm) |
| G.W/N.W |
88Kg/ 69Kg |
93Kg/ 73Kg |
105Kg/ 81Kg |
120Kg/ 95Kg |
|
