     Vertical Steam Autoclaves    50L
YF-50HJ

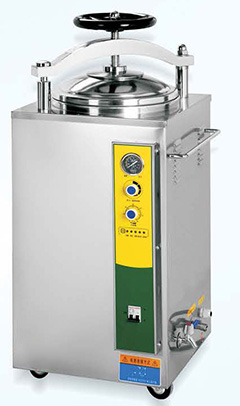

50L Vertical Cylindrical Pressure Steam Sterilizer (Hand round automatic)

Use

The vertical cylindrical pressure steam sterilizer is installed with an electrical heater, an automatically pressure-temperature controller, a safety valve, a releasing valve, a pressure-temeperature indicator, an alarm bell for finished sterilization and an instrument to automatically cut off the power of heater. It has the advantage of effective sterilization, convenient operation, safe, less electricity consuming and cheap. It is ideal equipment for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media, etc.

Characteristics

¡ñFully stainless steel structure
¡ñHand wheel type of quick-open door structure
¡ñPressure safety lock
¡ñIndicator light indicates working state
¡ñOver temperature & over pressure auto-protection
¡ñDouble scale indication pressure gauge
¡ñSelf inflating type seal
¡ñSafe protection of water lacking
¡ñAutomatically shut off with beep reminding after sterilization
¡ñEasy to operate£¬safe and reliable
¡ñWith two stainless steel sterilizing baskets

Technical Data

Technical data YF-35HJ   YF-50HJ   YF-75HJ   YF-100HJ
Chamber volume 35L(φ318×450)mm 50L(φ340×550)mm 75L(φ400×600)mm 100L(φ440×650)mm
 working pressure 0.22MPa 0.14MPa
Working temperature 134¡æ 126¡æ
Max working pressure 0.23 Mpa 0.165MPa
Heat average ≤±1¡æ
Timer 0¡«60min
Adjustment of temperature 105¡«134¡æ 105¡«126¡æ
Power 2.5Kw/AC220V.50Hz 3Kw /AC220V.50Hz 4.5KW /AC220V.50Hz
Overall dimension 450×450×1010(mm) 510×470×1130(mm) 560×560×1120(mm) 540×560×1250(mm)
Transport dimension 570×550×1150(mm) 590×590×1280(mm) 650×630×1280(mm) 680×630×1370(mm)
G.W/N.W 72Kg/ 56Kg 88Kg/ 68Kg 100Kg/80Kg 110 Kg/85Kg



The product information will probably be updated without notice, if that happens, please refer to the latest technical material.
