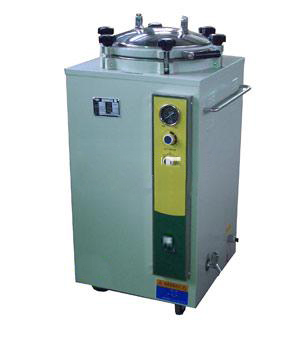

Vertical Pressure Steam Sterilizer
The vertical cylindrical pressure steam sterilizer is installed with an electrical heater, an automatically pressure-temperature controller, a safety valve, a releasing valve, a pressure-temeperature indicator, an alarm bell for finished sterilization and an instrument to automatically cut off the power of heater. It has the advantage of effective sterilization, convenient operation, safe, less electricity consuming and cheap. It is ideal equipment for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media, etc.
Characteristics:
¡ñThe chamber of the sterilizer is made of stainless steel
¡ñ Indicator light indicates working state
¡ñ Over temperature & over pressure auto-protection
¡ñ Safe protection of water lacking
¡ñ Double scale indication pressure gauge
¡ñ Automatically shut off with beep reminding after sterilization
¡ñ Easy to operate£¬safe and reliable
¡ñ With two stainless steel sterilizing baskets
Technical Data:
| Technical Data |
YF-C50L |
| Sterilizing chamber volume |
50L (φ340×550)mm |
| Working pressure |
0.14 MPa |
| Working temperature |
126¡æ |
| Timer |
0-60 min |
| Temperature scope |
105-126¡æ |
| Power |
3KW/AC220V 50Hz |
| Dimension |
510×470×1000mm |
| package dimension |
590×590×1120mm |
| G.W/N. W |
70/53Kg |
|
