     Tabletop Steam Autoclaves    20L
CLASS N-YF-XD20J

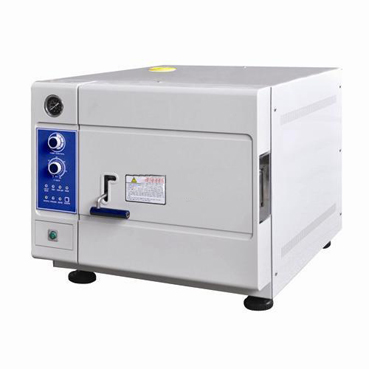

20L Tabletop Rapid Steam Sterilizer

Use

The sterilizer is a table type in safety and autocontrolled, which is designed for the unit of medical health, pharmacy, science and technology, etc. And mostly suitable for sterilizing of surgical, dental and eye instruments, glassware medicine, culture medium and biological dressing, food and other goods.

Characterstics

Indicator light indicates working state.
For 4~6 minutes rapidly sterilizing.
Sterilizing temperature and time can be preset.
Steam-water inner circulation system:no steam discharge,and the environment for sterilizing will be clean and dry.
Over temperature & over pressure auto-protection.
Safe protection of water lacking.
Exhaust the cool air automatically.
Door safety lock system.
With three stainless steel sterilizing plates.
The chamber of the sterilizer is made of stainless steel.
Automatically shut off with beep reminding after sterilization.

Technical Data

Technical Data CLASS N-YF-XD20J CLASS N-YF-XD24J CLASS N-YF-XD35J CLASS N-YF-XD50J
Sterilizing chamber volume 20L   (Ø250×420 mm) 24L  (Ø250×520 mm) 35L  (Ø300×500 mm) 50L  (Ø340×550 mm)
Working pressure 0.22Mpa
Working temperature 134
Adjustment  of  Temperature 105-134
Timer 0-60 min
Heat average ≤ ± 1
Power 1.5 KW / AC220V 50Hz 2.7 KW / AC220V 50Hz
Sterilizing plate 340×200×30 mm 400×200×30 mm 400×200×30 mm 500×250×30 mm
 (3pcs)  (3pcs)  (4pcs) (4pcs)
Dimension 480×480×384 mm 580×480×384 mm 730×550×510 mm 770×600×540 mm
Package dimension 700×580×500 mm 800×580×500 mm 820×680×650 mm 880×730×700 mm
G. W/N.W. 43/38 kg 50/44 kg 90/73 kg 105/86 kg



The product information will probably be updated without notice, if that happens, please refer to the latest technical material.
