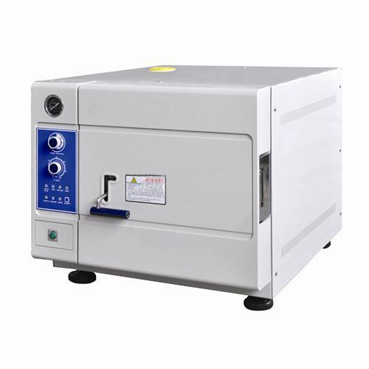

35L Tabletop Rapid Steam Sterilizer
Use
The sterilizer is a table type in safety and autocontrolled, which is designed for the unit of medical health, pharmacy, science and technology, etc. And mostly suitable for sterilizing of surgical, dental and eye instruments, glassware medicine, culture medium and biological dressing, food and other goods.
Characterstics
¡ñ Indicator light indicates working state.
¡ñ For 4~6 minutes rapidly sterilizing.
¡ñ Sterilizing temperature and time can be preset.
¡ñ Steam-water inner circulation system:no steam discharge,and the environment for sterilizing will be clean and dry.
¡ñ Over temperature & over pressure auto-protection.
¡ñ Safe protection of water lacking.
¡ñ Exhaust the cool air automatically.
¡ñ Door safety lock system.
¡ñ With three stainless steel sterilizing plates.
¡ñ The chamber of the sterilizer is made of stainless steel.
¡ñ Automatically shut off with beep reminding after sterilization.
Technical Data
| Technical Data |
CLASS N-YF-XD20J |
CLASS N-YF-XD24J |
CLASS N-YF-XD35J |
CLASS N-YF-XD50J |
| Sterilizing chamber volume |
20L (Ø250×420 mm) |
24L (Ø250×520 mm) |
35L (Ø300×500 mm) |
50L (Ø340×550 mm) |
| Working pressure |
0.22Mpa |
| Working temperature |
134¡æ |
| Adjustment of Temperature |
105-134¡æ |
| Timer |
0-60 min |
| Heat average |
≤ ± 1¡æ |
| Power |
1.5 KW / AC220V 50Hz |
2.7 KW / AC220V 50Hz |
| Sterilizing plate |
340×200×30 mm |
400×200×30 mm |
400×200×30 mm |
500×250×30 mm |
| (3pcs) |
(3pcs) |
(4pcs) |
(4pcs) |
| Dimension |
480×480×384 mm |
580×480×384 mm |
730×550×510 mm |
770×600×540 mm |
| Package dimension |
700×580×500 mm |
800×580×500 mm |
820×680×650 mm |
880×730×700 mm |
| G. W/N.W. |
43/38 kg |
50/44 kg |
90/73 kg |
105/86 kg |
|
