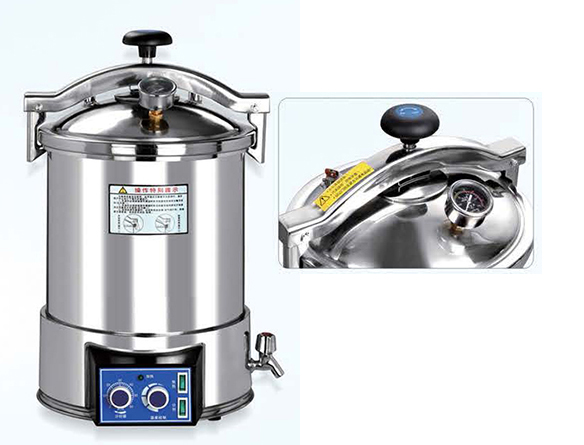

24L Portable Pressure Steam Sterilizer (Manually Operation)
Use
It uses satured steam to sterilize articles rapidly and efficiently. It is suitable for sterilizing medical instruments, surgical dressings, glass utensils, solutions, substrata in hospitals, public health centers, health stations, clinics in factories and mines, scientific research institutes, etc. It can also be used as a steam cooker in plateau areas to make high quality drinking water in industrial and mining enterprises.
Features
¡ñ Fully stainless steel structure.
¡ñ Hand wheel type of quick-open door structure.
¡ñIndicator light indicates working state
¡ñ Double scale indication pressure gauge.
¡ñ Electric heated.
¡ñ Time scope: 0~60min
¡ñ Automatically shut off with beep reminding after sterilization.
¡ñ Easy to operate,safe and reliable.
Technical data
| Technical Data / Model |
YF-YX-18LDJ |
YF-YX-24LDJ |
| Sterilizing volume (mm) |
18L Ø280X260 |
24L Ø280X390 |
| Working pressure |
0.14-0.16MPa |
| Working temperature |
126¡æ |
| Temperature adjust range |
105¡æ-126¡æ |
| Timer range |
0-60min |
| Max. safety pressure |
0.165Mpa |
| Heat average |
≤±1¡æ |
| Power |
AC220V 50Hz / 2KW |
| Packing dimension (mm) |
410×410×520 |
410×410×630 |
| G. W. / N. W. (kg) |
18/16 |
20/18 |
|
Portable Stainless Steel Steam Autoclaves
