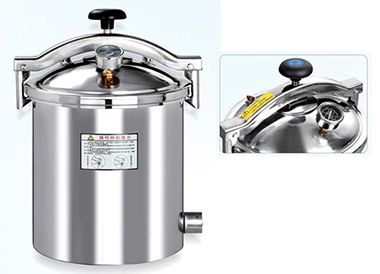

24L Portable Pressure Steam Sterilizer (Electric or LPG heated)
Use
It uses satured steam to sterilize articles rapidly and efficiently. It is suitable for sterilizing medical instruments, surgical dressings, glass utensils, solutions, substrata in hospitals, public health centers, health stations, clinics in factories and mines, scientific research institutes, etc. It can also be used as a steam cooker in plateau areas to make high quality drinking water in industrial and mining enterprises.
Characteristics
●fully stainless steel structure
● Hand wheel type of quick-open door structure
●Electric or LPG heated
●Working pressure: 0.14~0.16Mpa
●Working temperature: 126℃
●Double scale indication pressure gauge
●Easy to operate, safe and reliable
Technical data
| Technical Data |
YF-12HM |
YF-18HM |
YF-24HM |
| sterilizing volume |
12L Ø240X200(mm) |
18L Ø280X265(mm) |
24L Ø280X390(mm) |
| Working pressure |
0.14-0.16MPa |
| Working temperature |
126℃ |
| Max. safety pressure |
0.165Mpa |
| Power |
AC220V 50Hz / 2KW |
| Transport dimension |
360×360×520(mm) |
420×412×550(mm) |
420×420×650(mm) |
| G. W. / N.W. |
12/10 KG |
13/11 KG |
15/13 KG |
|
