     Floor Type Steam Sterilizers    500L
YF-500YDA

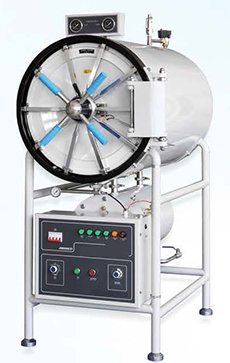

500L Horizontal Cylindrical Pressure Steam Sterilizer With Drying Function

Use

The horizontal sterilizer is adopted the way of gravity exchange to releasing the cold air from the chamber more completely to ensure the reliable sterilization. The control system automatically adjust the steam inlet and outlet according to chamber temperature during sterilizing. This unit is ideal equipment for clinics, scientific research institutes and other organizations to sterilize surgical instruments, fabric glassed, culture media, etc.

Characteristics

•Sterilizing course automatic sterilization controlled, easy to operate.

•With drying function, suitable dressing drying.

•With over-temperature, over-pressure auto-protect device.

•The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa. It can't be start on if the door doesn't close well.

•The safety valve will be open automatically when the inner pressure over 0.24MPa and the steam be exhausting to the water tank.

•The power will be cut-off automatically, cut-off the water and alarm whem the machine lacking water.

•The chamber of the sterilizer is made of stainless steel.

Technical Data

Technical Data YF-150YDA YF-200YDA YF-280YDA YF-400YDA YF-500YDA
Sterilizing chamber volume(mm) 150L (Ø440×1000) 200L  (Ø515×1000) 280L      (Ø600×1000) 400L  (Ø700×1100) 500L  (Ø700×1300)
Working pressure 0.22MPa
Working  temperature 134¡æ
Adjustment of temperature 40¡«134¡æ
Time for sterilization 0¡«60min
Time for drying 0¡«60min
Heat average ±2¡æ
Power   9KW / AC380V 50Hz    12KW / AC380V 50Hz   18KW / AC380V 50Hz
Dimension (mm) 1400×600×1300  1440×670×1650  1400×770×1780 1430×880×1830 1800×900×1820
Package dimension (mm) 1550×750×1850 1560×820×1850  1680×920×2100 1600x1050x2100 1850x1050x2100
G.W./N.W. 320 / 240 Kg 350 /260 Kg 465 /365 Kg 530 /420 Kg 580 /470 Kg
The product information will probably be updated without notice, if that happens, please refer to the latest technical material.
