     Tabletop Steam Autoclaves    20L
YF-XA20J

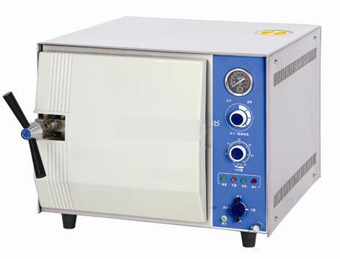

20L Tabletop Rapid Steam Sterilizer

Use

The sterilizer is a table type in safety and autocontrolled, which is designed for the unit of medical health, pharmacy, science and technology, etc. And mostly suitable for sterilizing of surgical, dental and eye instruments, glassware medicine, culture medium and biological dressing, food and other goods.

Characteristics

Indicator light indicates working state.
For 4~6 minutes rapidly sterilizing.
Sterilizing temperature and time can be preset.
Steam-water inner circulation system:no steam discharge,and the environment for sterilizing will be clean and dry.
Over temperature & over pressure auto-protection.
Safe protection of water lacking.
Exhaust the cool air automatically.
Door safety lock system.
With three stainless steel sterilizing plates.
Fully stainless steel structure.
Automatically shut off with beep reminding after sterilization.

Technical data

Technical Data YF-XA20J YF-XA24J
 Sterilizing chamber volume                          20L                            Ø250×420mm                            24L                                  Ø250×420mm
 Maximum working pressure 0.22Mpa
 Maximum working temperature 134
 Adjustment of temperature 105-134
 Timer 0-60 min
 Chamber temperature equal ≤±1
 Source power 1.5KW / AC220V 50Hz (AC110V 60HZ)
 Sterilizing plate 340×200×30(mm)  (3 PCS) 400×200×30(mm)   (3 PCS)
 Dimensions 480×480×384(mm) 580×480×384(mm)
Package dimensions 700×580×500(mm) 800×580×500(mm)
G. W. / N.W. 43/38 (kg) 50/44 (kg)



The product information will probably be updated without notice, if that happens, please refer to the latest technical material.
