     Tabletop Steam Autoclaves    24L
YF-XA24J

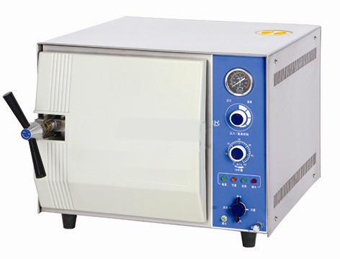

24L Tabletop Rapid Steam Sterilizer

Use

The sterilizer is a table type in safety and autocontrolled, which is designed for the unit of medical health, pharmacy, science and technology, etc. And mostly suitable for sterilizing of surgical, dental and eye instruments, glassware medicine, culture medium and biological dressing, food and other goods.

Characteristics:

¡ñ Indicator light indicates working state.
¡ñ For 4~6 minutes rapidly sterilizing.
¡ñ Sterilizing temperature and time can be preset.
¡ñ Steam-water inner circulation system:no steam discharge,and the environment for sterilizing will be clean and dry.
¡ñ Over temperature & over pressure auto-protection.
¡ñ Safe protection of water lacking.
¡ñ Exhaust the cool air automatically.
¡ñ Door safety lock system.
¡ñ With three stainless steel sterilizing plates.
¡ñ Fully stainless steel structure.
¡ñ Automatically shut off with beep reminding after sterilization.

Technical data:

TECHNICAL DATA YF-XA20J YF-XA24J
 Sterilizing chamber volume 20L (φ250×420mm) 24L(φ250×420mm)
 Maximum working pressure 0.22Mpa
 Maximum working temperature 134¡æ
 Adjustment of temperature 105-134¡æ
 Timer 0-60 min
 Chamber temperature equal ≤±1¡æ
 Source power 1.5KW/AC  220V50Hz(AC110V 60HZ)
 Sterilizing plate 340×200×30mm  (3 PCS) 400×200×30mm   (3 PCS)
 Dimensions 480×480×384 mm 580×480×384 mm
Package dimensions 700×580×500 mm 800×580×500 mm
G. W / N.W. 43/38  kg 50/44 kg
The product information will probably be updated without notice, if that happens, please refer to the latest technical material.
