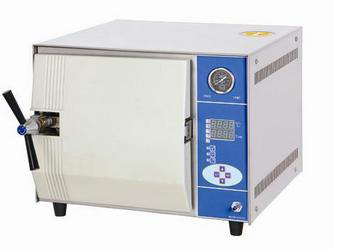

20L Tabletop Fast Steam Sterilizer (Digital display With Drying Function)
Use
The sterilizer is a table type in safety and autocontrolled, which is designed for the unit of medical health, pharmacy, science and technology, etc. And mostly suitable for sterilizing of surgical, dental and eye instruments, glassware medicine, culture medium and biological dressing, food and other goods.
Charateristics
¡ñ For 4~6 minutes rapidly sterilizing.
¡ñ Digital display of working status,touch type key.
¡ñWith 3 fixed cyces of sterilizing program and optional for user.
¡ñ The whole process of water adding,temperature rising,sterilizing,drying steam discharging controlled automatically.
¡ñ Steam-water inner circulation system:no steam discharge,and the environment for sterilizing will be clean and dry.
¡ñ Exhaust the cool air automatically.
¡ñ Safe protection of water lacking.
¡ñ Door safety lock system.
¡ñ With three stainless steel sterilizing plates.
¡ñ The chamber of the sterilizer is made of stainless steel.
¡ñ Automatically shut off with beep reminding after sterilization.
¡ñ With drying function.
Technical data
Technical Data |
YF-XA20D |
YF-XA24D |
Sterilizing chamber volume |
20L Ø250×420 (mm) |
24L Ø250×520 (mm) |
Maximum working pressure |
0.22Mpa |
Maximum working temperature |
134¡æ |
Adjustment of temperature |
105-134¡æ |
Timer |
0-99min |
Chamber temperature equal |
≤ ± 1¡æ |
Source power |
1.5KW / AC 220V 50Hz |
Sterilizing plate |
340×200×30 (mm) (3PCS) |
400×200×30(mm) (3PCS) |
Dimension |
480×480×384(mm) |
580×480×384(mm) |
Package dimension |
700×580×500(mm) |
800×580×500(mm) |
G. W. / N.W. |
43/40(kg) |
50/45(kg) |
|
