     Tabletop Steam Autoclaves    24L
YF-XA24D

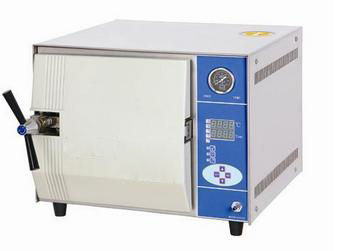

24L Tabletop Fast Steam Sterilizer (Digital display With Drying Function)

Use

The sterilizer is a table type in safety and autocontrolled, which is designed for the unit of medical health, pharmacy, science and technology, etc. And mostly suitable for sterilizing of surgical, dental and eye instruments, glassware medicine, culture medium and biological dressing, food and other goods.

Charateristics

¡ñ For 4~6 minutes rapidly sterilizing.
¡ñ Digital display of working status,touch type key.
¡ñWith 3 fixed cyces of sterilizing program and optional for user.
¡ñ The whole process of water adding,temperature rising,sterilizing,drying steam discharging controlled automatically.
¡ñ Steam-water inner circulation system:no steam discharge,and the environment for sterilizing will be clean and dry.
¡ñ Exhaust the cool air automatically.
¡ñ Safe protection of water lacking.
¡ñ Door safety lock system.
¡ñ With three stainless steel sterilizing plates.
¡ñ The chamber of the sterilizer is made of stainless steel.
¡ñ Automatically shut off with beep reminding after sterilization.
¡ñ With drying function.

Technical data

Technical   Data YF-XA20D YF-XA24D
Sterilizing chamber volume                      20L                           Ø250×420 (mm)                        24L                              Ø250×520 (mm)
Maximum working pressure 0.22Mpa
Maximum working temperature 134¡æ
Adjustment of temperature 105-134¡æ
Timer 0-99min
Chamber temperature equal ≤ ± 1¡æ
Source power 1.5KW / AC 220V 50Hz
Sterilizing plate 340×200×30 (mm) (3PCS) 400×200×30(mm) (3PCS)
Dimension 480×480×384(mm) 580×480×384(mm)
Package dimension 700×580×500(mm) 800×580×500(mm)
G. W. / N.W. 43/40(kg) 50/45(kg)



The product information will probably be updated without notice, if that happens, please refer to the latest technical material.
