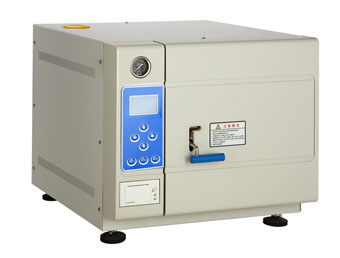

50L Class B Tabletop Pulse Vacuum Steam Autoclave
Use
The table type sterilizers are safely auto-controlled, which are designed for the dental clinics, hospitals, school lab,scientific research institutions and laboratory. And mostly suitable for sterilizing of surgical, dental and eye instruments,glassware medicine, culture medium and biological dressing, food, etc.
Characteristics
• Standard Class B with three times vacuum and drying, the remaining temperature of sterilized instrument is less than 0.2%.
• LCD display working status, touch keys.
• The vacuum data can reach -0.8bar, it fits various instruments, including package, unpackaged, solid, hollow, multi-apertures and inset pipes. It makes sure the instrument can be sterilized completely.
• Fully computer controlled LCD display bright show. The interface is modularized panel for easy operation.
• It is installed with BOWIE&DICK which measures the penetration of water steam.
• It has vacuum test which can make sure the ability of vacuum testing.
• Fast and independent steam generator.
• Built-in mini printer which can record the sterilizer information.
• Equipped with safety valve, safety lock door system, pressure lock system, pressure or temperature overload protection, alarm system.
• It inactivates the HIV,HBV,BSE and bacillus efficiently.
Technical data
| Technical Data / Model |
YF-TM-35DV |
YF-TM-50DV |
| Sterilizing chamber volume (mm) |
35L Ø300×500 |
50L Ø340×550 |
| Working pressure |
0.22MPa |
| Working temperature |
134¡æ |
| Adjustment of temperature |
105¡«134¡æ |
| Timer range |
0¡«99min |
| Heater average |
≤±1¡æ |
| Power |
AC220V50Hz/2.7KW |
| Inner dimension (mm) |
730×550×510 mm |
770×600×540 mm |
| Package dimension (mm) |
810×680×650 mm |
880×730×700 mm |
| G.N. / N.W. (kg) |
103 / 97 |
125 / 110 |
|
