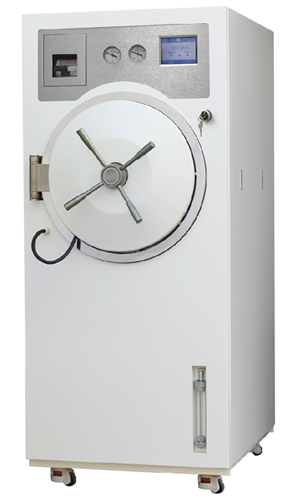

XG1.C Steam Sterilizer

Product introduction

     It is applicable for the sterilization of unpacked solid instrument in department of stomatology, ophthalmology, operation room and CSSD.

Product features

●Touch screen display of temperature, pressure, time, running status and failure warning.

●Equipped with professional and systematized sterilizing programs of fabric, instrument, rubber and liquid.

●The positive pressure air-discharging system will effectively discharge the cold air from chamber to improve steam saturability.

●Build-in efficient steam generator, microcomputer temperature control, time and energy saving.

●Equipped with post-drying function which makes the residual humidity of sterilized articles less than 3% .

●Equipped with printer to print date, time and process parameters.

●Over-heat auto protection device, dual door safety lock device, overpressure relief valve, short-circuit protection and overpressure protection .

●Perfect four-level  authority  management system  to avoid  mis-operation.

Technical parameters

Design pressure: 0.25MPa

Maximum working pressure: 0.23MPa

Sterilizing temperature : 105℃-136℃

Chamber material: 06Cr19Nil o stainless steel (304)

Accuracy of temperature display:  0.1℃

Accuracy of pressure display: 1Kpa
