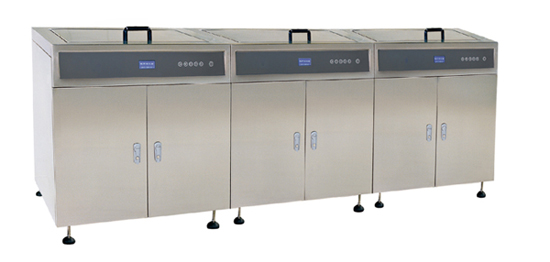

Ultrasonic washer QX series

Product introduction

     QX series ultrasonic washer is essential washing machine in CSSD, operating room and laboratory.

We provide integrated ultrasonic washer solutions, including preliminary washing, secondary washing and deep washing with different frequency. Users can also choose the ultrasonic washing auxiliary machine for flushing and drying. The machine consists of washing tank, ultrasonic generator, ultrasonic transducer, heating tube, temperature transmitter, and water level transmitter, draining pump, basket and pipeline. It uses high frequency oscillation signal, which sent out by ultrasonic generator, and converts to high frequency mechanical oscillation signal and diffuses into the cleaning solution. The ultrasonic spreads forward in the cleaning solution to generate millions of tiny bubbles. During the process called 'Cavitation' the bubbles implode immediately to generate high pressure and impacts the articles to spall the fouling adhered on the surface and gap of the articles to achieve cleaning purpose.

Product features

●Excellent washing effect and high washing accuracy that could clean those instruments with uneven surface or tiny gap.

●High washing speed improves working efficiency. It protects the instrument from contamination caused by hand contact.

● The tank and outer cover adopt high quality stainless steel which is durable and easy to clean.

All tanks are auto water-injecting which injects water to certain water level.

●All tanks are equipped with reliable LCD monitor that could be controlled independently.

● It can be equipped with extended-function tank: flushing tank, drying tank.

     Flushing tank: High pressure water flushing after ultrasonic washing. It is equipped powerful circulating pump and specialized nozzle to flush , rinse, disinfect and lubricating

on instrument.

     Drying tank: Used to dry the instrument after washing; the high quality heater and efficient fan ensures the thoroughIy dry.

Technical Parameters
