Medical Drying Cabinet
¡ñ General description
YGZ-1000 series drying cabinet is kind of small-size drying equipment developed according to the market demand. Drying temperature setting range: 40¡æ-90¡æ (adjustable); Drying time setting range: 0-9999s (adjustable).
¡ñ Application
It is mainly used for drying of surgical operating instrument, stainless steel dish and bowl, glass ware and plastic items. It is the best choice for hospital CSSD, operating room and other departments in which items need toget dried.
¡ñ Capacity
It can handle 10 DIN standard instrument trays or stainless steel dishes/bowls.
¡ñ Control system
It equipped with reliable PLC which is assembled of American chip, 3 sets of default programs (A: operating instrument B: glass ware C: plastic article) and 2 sets of custom programs. The screen displays dynamic parameters timely which is intuitionistic and the parameters are adjustable. It is equipped with self-checking function.
¡ñ Materials

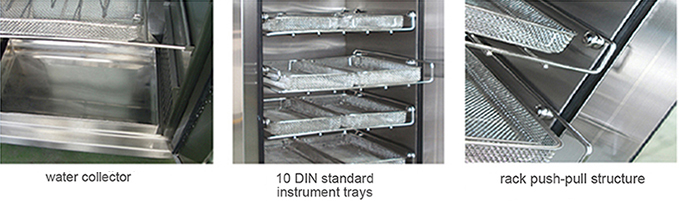

The whole chamber adopts 304 stainless steel board and thermal insulation jacket to avoid heat lost; The triple-glazing door is designed like a glass window for avoiding heat lost and monitoring the inside working. The unique design of the rack structure is easy to pick and place.

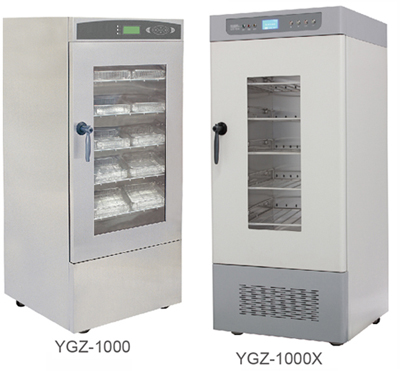

According to appearance and material, it can be divided into YGZ-1000 (all stainless steel) and YGZ-1000X (outer cover with plastic spray).
|
Medical Drying Cabinets
