Main characteristics

◆4.3”(95x55mm) color liquid crystal screen, light-touch keyboard, internal clock;

◆Temperature controlled by a microcomputer, accuracy ±1%, working temperature range 60~220℃

◆Fast heating, 40 seconds required from room temperature to 180℃

◆Automatic temperature reduction operated by a fan connected to temperature control system, reducing the waiting time

◆Adjustable fixed-force system, suitable for sealing 3D paper-plastic bags and paper-plastic bags of any sickness

◆Advanced flat ceramic heating components, high-temperature stability, long life expectancy and high heat efficiency

◆Automatic fault detection and alarm

Specification

◆Sealing speed 10m/min; automatic seal printing detection using light-control technique

◆Seal width 12mm; Sealing strength meets YY/T 0698.5-2009 requirement

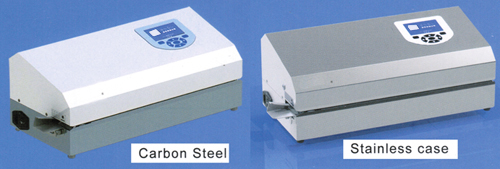

◆Seal margin 0±35mm adjustable; machine shell material: spray carbon steel or 304 stainless steel

◆Voltage: 220V 50Hz(optional); Maximum power: 500W

◆Equipment dimension: 560X260X220(mm)    Weight: 18Kg

Printing System Features

◆YF101-PD prints English, numbers and special symbols in YY 0466-2003 Symbols Used for Medical Equipment Labels, Signs and information. It prints sterilizing date, expire date, lot number, operator, etc.

◆Sterilizing and expire date auto adjust; Automatic faults alarm display during working

◆Adjustable character font and style, easy to print more information on narrower bags

◆Print function can be disabled or partially activated

◆The system provides the required minimum width of the bag based on the content of print, easier for users to define the print content or select appropriate bag. Auto alarm when width is insufficient.
