Main Features:

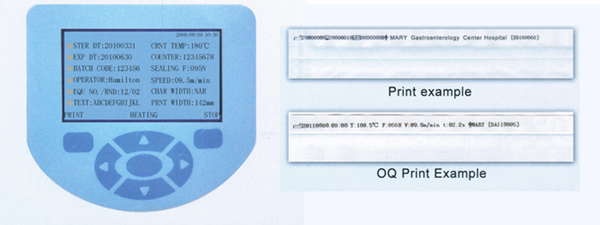

◆4.3”(95X55mm) colour liquid crystal screen, light-touch keyboard, internal clock

◆YF101-U connectable to PC via USD; Expire date, lot number, operator, label number, pot number adjustable on PC through specific application (EF101-U has a memory card to track the seal quality)

◆Temperature controlled by a microcomputer, accuracy ±1%, working temperature range 60~220℃

◆Operation Qualification function(OQ, combined with sealing test card to track the machine performance

◆High rate increase in temperature, 40 seconds required from room temperature to 180 ℃

◆Automatic temperature reduction operated by a fan connected to temperature control system, reducing the waiting time

◆Adjustable fixed-force system, suitable for sealing paper-plastic bags, 3D paper-plastic bags and paper-paper bags

◆Automatic fault detection and alarm

 Technical Parameters

◆Sealing speed: 10m/min      Seal width: 12mm

◆Seal margin: 0~35mm adjustable    Power: 500W

◆Voltage: 220V  50Hz(optional)     Weight: 18Kg

◆Equipment dimension: 560X260X220(mm)

Printing System Features

◆YF101-U prints English, numbers and special symbols in YY 0466-2003 Symbols Used for Medical Equipment Labels, Signs and Information. It prints sterilizing date, expire date, lot number, operator, etc.

◆Sterilizing and expire date auto adjust; Automatic faults alarm display during working

◆Adjustable character font and style, easy to print more information on narrower bags
