Main characteristics

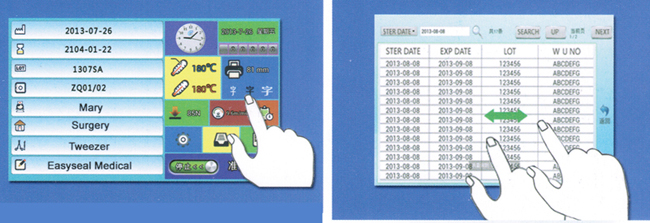

◆8” Color Capacitive touch screen, graphical user interface, built-in clock, and parameters can be set up with automatic storage function

◆Without connect to the computer it can set up or change the parameters such as operator, department, tool name and custom on the machine

◆With the self-printing parameters database, you can also use Wireless Router to record sealing parameters, for 8 million times and store sealing and print information for 8 million times to facilitate back the query

◆With a sealing cutter for precise statistics of the sealing numbers

◆With unique function of margin print, blank print, interval print and number print

◆Temperature controlled by a microcomputer, accuracy ±1%, working temperature range 60-220℃

◆When temperature is out of ±4℃, the machine will stop work to insure the quality of the sealing and the security

◆Adjustable fixed-fore system, suitable for sealing 3D paper-plastic bags and paper-plastic bags of any sickness

◆Automatic fault detection and alarm

◆Standby time and temperature is adjustable, it can recover to the work temperature in a short time

◆Advanced flat ceramic heating components, high-temperature stability, long life expectancy and high heat efficiency

 Technical parameters

Sealing speed: 10±0.5m/min                  Seal width: 12mm

Seal margin: 0~35mm adjustable              Power: 500W

Temperature range: 60~220℃ adjustable       Dimension: 560X260X220mm

Accuracy: ≤1%                             Voltage: 220V±10%   50Hz

Printing system features

◆YF101-T prints sterilizing date, expire date, lot number

◆Sterilizing and expire date auto adjust; Automatic faults alarm display during working

◆Print function can be disable or partially activated

◆The system provides the required minimum width of the bags based on the content of print easier for users to define the print content or select appropriate bag
