Main Features

YF102-U can connect with the computer to set the parameters and change the print content, or it can transfer information via a SD card, you can use any computer you use and it can print two lines at the same time.

YF102-T with a 8” Color Capacitive touch screen, graphical user interface, built-in clock, and parameters can be set up with automatic storage function, Without connect to the computer it can set up or change the parameters such as operator, department, tool name and custom on the machine and it can print two lines with two print head itself.

Technical parameters

Sealing speed: 10±0.5m/min

Seal width: 12mm

Seal margin: 0~35mm adjustable

Voltage: 220V±10%  50Hz

Power: 500W   Wight: 20Kg

Dimension: 560X260X220mm

Performance specification

◆YF102 PRINTS English, numbers and special symbols in YY0466-2003 symbols used for medical equipment labels, signs and information. It prints sterilizing date, expire date, lot number, operator, etc.

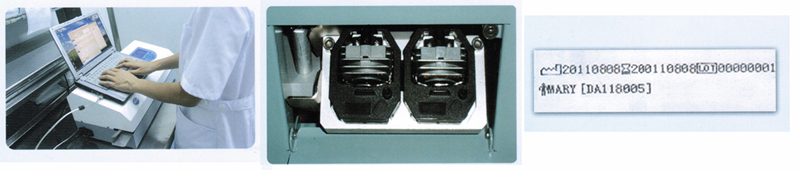

◆Double print head it can set the print issue and adjust print content realizing double line print, people can decide the place of the print.

◆Running automatic detection can detect the running pressure and speed and display online, on the detect mode, the machine can print and in store the speed, pressure and temperature.

◆YF102-U can record and in store 3 million units sealing parameters for sealing quality traceability.

◆YF102-T can use

◆use Wireless Router to record sealing parameters, for 8 million times and store sealing and print information for 8 million unites to facilitate back the query.

◆Automatic fault detection and alarm.

◆Adjustable character font and style, easy to print more information on narrower bags.

◆Print function can be disable or partially activated.

◆Standby time and temperature is adjustable, it can recover to the work temperature in a short time.

PS: According the users demand we can realize tree lines or four lines print, the other function please refer to YF101-U/T
