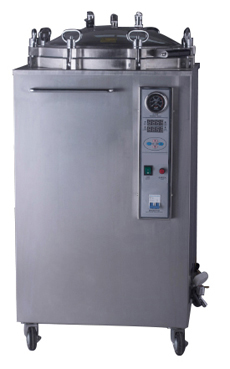

High Pressure Steam LED Digital display Vertical Autoclave Sterilizer
Application:
1.Suitable for sterilizing surgical instruments, glassware, medium, wastes, dressings which can resistant high temperature and pressure.
2.Medical health center, such as laboratory, operation room, supply room, and biomedical research institution.
l LED digital display screen
l PID microcomputer control system, automatic exhausting cold air
l High quality SUS304 stainless steel material
l Double scale indication pressure gauge
l Sterilization temperature & time can be set
l Light indicate working status
l High pressure faucet drainage
l Water lack auto-protection
l Over Pressure auto-discharging
l Over current auto-protection
l Over temperature auto-protection
l Easy operation, safe and reliable
♦Drying function can be choose install.
TECHNICAL DATA:
|
MODEL
|
YF-B35L (digital)
|
YF-B50L (digital)
|
YF-B75L (digital)
|
YF-B100L(digital)
|
YF-B120L(digital)
|
YF-B150L(digital)
|
|
Volume
|
35L
|
50L
|
75L
|
100L
|
120L
|
150L
|
|
Max Working Temperature
|
134℃
|
|
Max Working Pressure
|
0.22Mpa
|
|
Time Range
|
0-999min
|
|
Temperature Range
|
100℃-134℃
|
|
Sterilization Chamber(mm)
|
Φ300*485
|
Φ320*545
|
Φ388*480
|
Φ388*630
|
Φ460*590
|
Φ460*700
|
|
Power
|
AC220V/50Hz/2.5KW
|
AC220V/50Hz/3.5KW
|
AC220V/50Hz/4.0KW
|
|
