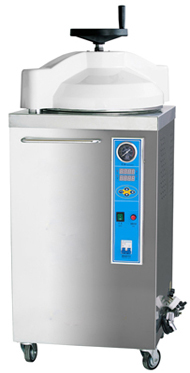

     Vertical Pressure Steam Autoclaves    75L
YF-B75L(Hand Wheel & Digital)

 High Pressure Steam LED Digital display Vertical Sterilizer (with Hand Wheel quick open door)



Application:

1.Suitable for sterilizing surgical instruments, glassware, medium, wastes, dressings which can resistant high temperature and pressure.

2.Medical health center, such as laboratory, operation room, supply room, and biomedical research institution.



 Features:

u   High quality SUS 304 stainless steel chamber

u   One basket, easy to take out

u   PID Microcomputer Control system, automatic exhausting cold air

u   LED digital display sterilization temperature and time

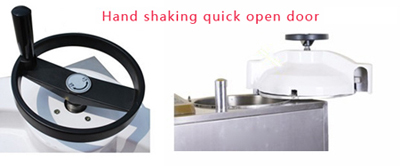

u   Hand wheel quick open door structure

u   Double safety interlocking device

u   Universal wheel, easy to move

u   Tempered glass anti-scald protection

u   Sound-light alarm when sterilization finished

u   Over pressure auto-discharging

u   Over current auto-protection

u   Over temperature auto-protection

u   Discharge valve in the bottom, safety valve on the back

u   Easy operation, safe and reliable

uDrying system can be optional.

uOne year warranty



TECHNICAL DATA:

MODEL

YF-B35L

(Digital&hand wheel)

YF-B50L

(Digital&hand wheel)

YF-B75L

(Digital&hand wheel)

YF-B100L

(Digital&hand wheel)

Volume

35L

50L

75L

100L

Max Working Temperature

134¡æ

Drying Temperature    (Be optional)

60¡æ-110¡æ

Max Working Pressure

0.22Mpa

Time Range

0-9999min

Temperature Range

100-134¡æ

Sterilization Chamber

Φ318*420mm

Φ318*530mm

Φ388*480mm

Φ388*630mm

Power

AC220V/50Hz/2.5KW

AC220V/50Hz/3.5KW

AC220V/50Hz/4.0KW



The product information will probably be updated without notice, if that happens, please refer to the latest technical material.
