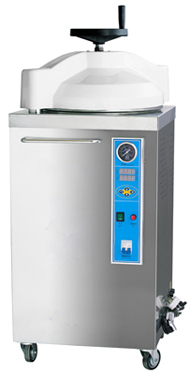

High Pressure Steam LED Digital display Vertical Sterilizer (with Hand Wheel quick open door)
Application:
1.Suitable for sterilizing surgical instruments, glassware, medium, wastes, dressings which can resistant high temperature and pressure.
2.Medical health center, such as laboratory, operation room, supply room, and biomedical research institution.
Features:
u High quality SUS 304 stainless steel chamber
u One basket, easy to take out
u PID Microcomputer Control system, automatic exhausting cold air
u LED digital display sterilization temperature and time

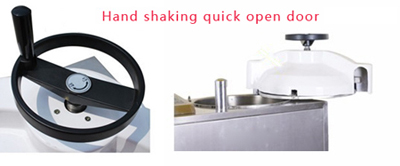

u Hand wheel quick open door structure
u Double safety interlocking device
u Universal wheel, easy to move
u Tempered glass anti-scald protection
u Sound-light alarm when sterilization finished
u Over pressure auto-discharging
u Over current auto-protection
u Over temperature auto-protection
u Discharge valve in the bottom, safety valve on the back
u Easy operation, safe and reliable
uDrying system can be optional.
uOne year warranty
TECHNICAL DATA:
MODEL
|
YF-B35L
(Digital&hand wheel)
|
YF-B50L
(Digital&hand wheel)
|
YF-B75L
(Digital&hand wheel)
|
YF-B100L
(Digital&hand wheel)
|
Volume
|
35L
|
50L
|
75L
|
100L
|
Max Working Temperature
|
134¡æ
|
Drying Temperature (Be optional)
|
60¡æ-110¡æ
|
Max Working Pressure
|
0.22Mpa
|
Time Range
|
0-9999min
|
Temperature Range
|
100-134¡æ
|
Sterilization Chamber
|
Φ318*420mm
|
Φ318*530mm
|
Φ388*480mm
|
Φ388*630mm
|
Power
|
AC220V/50Hz/2.5KW
|
AC220V/50Hz/3.5KW
|
AC220V/50Hz/4.0KW
|
|
