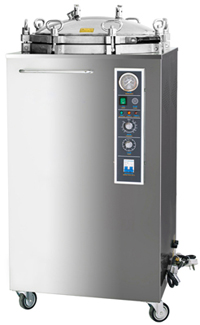

Vertical High Pressure Steam Autoclave Sterilizer (Drying function is optional)
Application:
1.Suitable for sterilizing surgical instruments, glassware, medium, wastes, dressings which can resistant high temperature and pressure.
2.Medical health center, such as laboratory, operation room, supply room, and biomedical research institution.
l High quality SUS304 stainless steel chamber
l Universal wheel, easy to move
l Accurate Double scale indication pressure gauge
l Sterilization temperature & time can be set
l Silicone seal ensuring no steam leakage
l Spin buttons to set sterilization temperature and time
l Blue, orange and red light showing work status
l High pressure faucet drainage
l Water lack auto-protection
l Over Pressure auto-discharging
l Over current auto-protection
l Over temperature auto-protection
l Easy operation, safe and reliable
♦Drying function can be choose install.
TECHNICAL DATA:
|
MODEL
|
YF-C35L
|
YF-C50L
|
YF-C75L
|
YF-C100L
|
YF-C120L
|
YF-C150L
|
|
Volume
|
35L
|
50L
|
75L
|
100L
|
120L
|
150L
|
|
Max Working Temperature
|
134℃
|
|
Max Working Pressure
|
0.22Mpa
|
|
Time Range
|
0-80min
|
|
Temperature Range
|
115℃-129℃
|
|
Sterilization Chamber(mm)
|
Φ300*485
|
Φ320*545
|
Φ388*480
|
Φ388*630
|
Φ460*590
|
Φ460*700
|
|
Power
|
AC220V/50Hz/2.5KW
|
AC220V/50Hz/3.5KW
|
AC220V/50Hz/4.0KW
|
|
Vertical Pressure Steam Autoclaves
