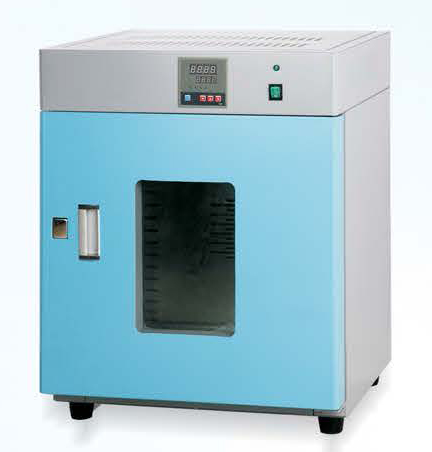

ZHG9000 Series Intelligent Blast Drying Ovens
Characteristics
• The chamber of the blasting oven is made up of superior stain steel sheet or the mirror-finish stainless steel sheet, and the outside sprayed with plastic powder, double-decked tempered glass-observation, with handsome appearance, and it is safe and convenient to operate on.
• The blasting oven is controlled by the microcomputer, equipped with temperature setting testing, double digital display and PID self-setting function.
• Equip with over-temperature auto-protection & time setting, undulatory property is small.
• The blasting oven is equipped with following alarming function, churned-up hot air circle, low heat age lose, blasting and heating can be separately operated.
• Hot air circle system is made up of exit fans and suitable fan duct with low noisy, the temperature in the chamber is uniformity.
Technical Data
|
Model
|
ZHG-9040A(S)
|
ZHG-9070A(S)
|
ZHG-9140A(S)
|
ZHG-9240A(S)
|
ZHG-9640A(S)
|
|
Power supply
|
AC220V 50Hz
|
|
The range of temperature
|
50℃~300℃
|
|
Heat average
|
±1℃
|
|
Followed-alarming
|
+5℃
|
|
Power
|
1000W
|
1500W
|
2000W
|
2500W
|
4500W
|
|
Chamber dimension(mm)
|
350X350X350
|
450X350X450
|
550X450X550
|
600X500X750
|
800X800X1000
|
|
External Dimension(mm)
|
500X560X705
|
650X560X805
|
750X660X905
|
800X710X1105
|
1000X1010X1355
|
Remark: A-the inner chamber is made up of galvanized sheet.
AS-the inner chamber is made up of mirror-finish stain steel sheet.
|
