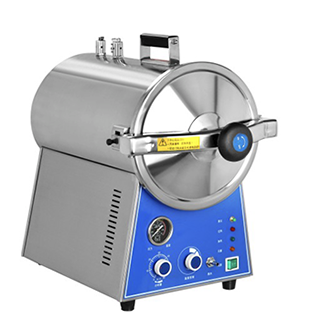

24L Horizontal Tabletop Pressure Steam Sterilizers
Use
The sterilizer is a table type in safety and autocontrolled, which is designed for the unit of medical health, pharmacy, science and technology, etc. And mostly suitable for sterilizing of surgical, dental and eye instruments, glassware medicine, culture medium and biologoical dressing, food and other goods,
Characteristics
♦Sterilzing course: Automatic sterilization controlled by computer, easy to operate.
♦Maximum temperature: 134℃, suitable for 4-6 minutes flash sterilizing.
♦Safe protection of water lacking.
♦With over-temperature, over-pressure auto-protect device.
♦After sterilization it will automatically cut the power and then alarm.
♦Fully stainless steel structure.
Technical data
| Technical Data |
YF-T16J |
YF-T24J |
| Sterilizing chamber volume |
16L Ø250X360mm
|
24L Ø270X410mm
|
| Working pressure |
0.22MPa |
| Working temperature |
134℃ |
| Temperature adjust range |
105-134℃ |
| Timer range |
0-60 min |
| Heat average |
≤±1℃ |
| Sterilizing plate |
340X200X30(mm) 3pieces |
| Power |
AC220V 50Hz / 1.5KW |
| Dimension |
545×328×423(mm) |
560×350×500(mm) |
| Package dimension |
620×410×570(mm) |
620×410×570(mm) |
| G.W / N. W |
18/15 KG |
20/18 KG |
|
