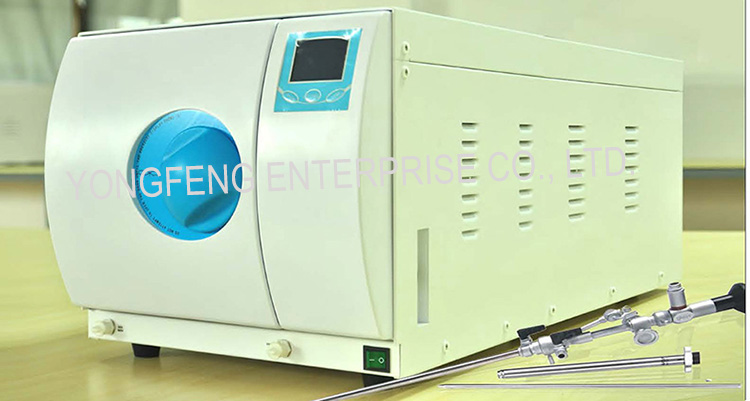

29 Liter Class B Hospital Compact Table Top Rapid Autoclave (Fully Automatic, LCD Display)
General Descriptions
This 29 liter class B autoclave is an extended version of item No. CLASS B-AAS-23L. The chamber has been extended to 580mm in length which allows this autoclave to sterilize long instruments which may not fit inside other models.
Performance specifications
1. Fully automatic benchtop autoclave with pre set programs.
2. Liquid sterilization program optional.
3. Choice of language settings including: English, Spanish, German and Chinese.
4. Stainless steel chamber, safe, reliable and wear well.
5. Easily accessible water tank.
6. In built independent rapid steam generator ensures quick sterilization cycles.
7. Rapid post sterilization vacuum drying.
8. Use import double head vacuum pump.
9. It operates automatically with 134ºC and 121ºC sterilization temperatures.
10. LCD screen, displaying time, temperature and pressure, process alert and instrument conditions. Friendly user interface.
11. Fail alarm indicates cycle failure and detail error code.
Multiple Security Protective Devices
1. Double door protection system prevents the cycle from starting if the door is not correctly locked. This system also prevents the door from opening if the pressure inside the chamber is not equal to atmospheric pressure outside the chamber.
2. Pressure safety valve prevents over pressure in the chamber and steam generator.
3. The power is automatically cut off if a short circuit or electrical fault occurs.
4. Able to detect and identify the exact cause of any problems, and to issue a specific error code to the operator.
5. Water level main switch in the main tank controlling the min and max water level.
Technical Data
|
Model
|
CLASS B-AAS-8L
|
CLASS B-AAS-16L
|
CLASS B-AAS-18L
|
CLASS B-AAS-23L
|
CLASS B-AAS-23L-T
|
|
Volume
|
8L
|
16L
|
18L
|
23L
|
29L
|
|
Chamber Size
|
Φ 170× 320mm
|
Φ 230× 360mm
|
Φ 247× 350mm
|
Φ 247× 450mm
|
Φ 247× 600mm
|
|
Power
|
1500W
|
2000W
|
2200W
|
2200W
|
2200W
|
|
Net Weight
|
34.5Kgs
|
45Kgs
|
47Kgs
|
51Kgs
|
55Kgs
|
Documentation
1.External printer is optional
2. USB port: it is used for connecting a USB stick, all sterilization data are automatically written in the USB stick and can be read directly in any PC and stored electronically.
3.Internal memory: the last 20 cycles can be automatically stored in the autoclave system, which can be print out at any time.
Optional
1.Printer
2.USB port and USB stick
3.Double door locking device
4.Independent drying program
|
