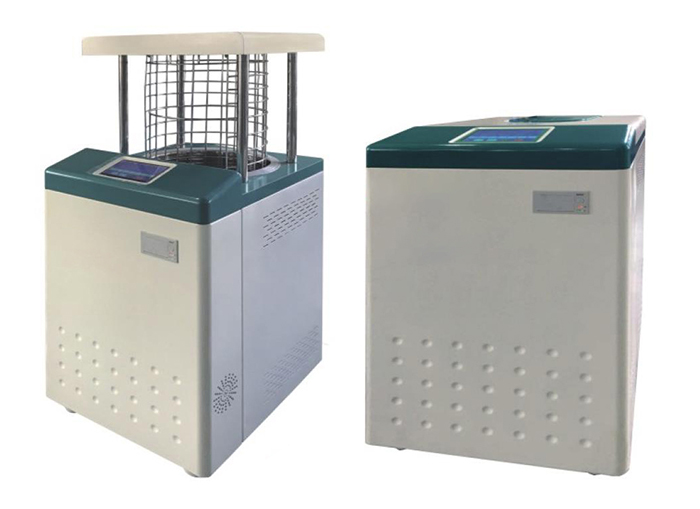

120L Vertical Pulse Vacuum Steam Sterilizer (Elevating-type)
Characteristics

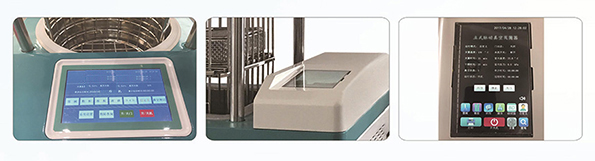

• 7" capacitive touch screen, fully automatically controlled, easy to operate on.
• Elevating type door, which is more convenient to place and fetch the articles from the autoclave.
• The whole procedure from water inlet, pulse vacuum, heat, sterilizing, water outlet, exhausting to vacuum drying, which are all automatically by one-key operation.
• Pulse vacuum, the limit is -0.080Mpa, which ensure the sterilizing more completely.
• Separated steam generator, which is more energy saving by comparing to the normal heating and prevent the sterilizing objects from been oxidized.
• There are several programs loaded in the autoclaves for different requirement of different articles.
• With PT-TT testing port, easy to run the testing.
• Equipped with Germany SARTORIUS Sterile ventilation filter MIDISART 2000 0.20um, which ensure the air is sterile, prevent the contamination.
• Steam-water inner circulation system: no steam discharge, and the environment for sterilizing will be clean and dry.
Technical Data
| Technical Data / Model |
YF-LS-60SV |
YF-LS-80SV |
YF-LS-100SV |
YF-LS-120SV |
| Chamber volume (mm) |
60L §æ396 x 490 |
80L §æ396 x 650 |
100L §æ480 x 560 |
120L §æ480 x660 |
| The height after rising (mm) |
1310 |
1590 |
1475 |
1565 |
| Working pressure |
0.22MPa |
| Working temperature |
134¡æ |
| Heat average |
≤±1¡æ |
| Timer range |
0~99min |
| Temperature adjust range |
105~134¡æ¡æ |
| Power |
Steam generator: 3kW Dry blanket: 2.4KW/AC220V 50Hz |
Steam generator: 3.6KW Dry blanket: 2.4KW/AC220V 50Hz |
| Overall dimension (mm) |
686 x 556 x913 |
686 x556 x1035 |
840x600x970 |
840x600x1060 |
| Packing dimension (mm) |
786x656 x1013 |
786x656 x1135 |
940x610x1000 |
940x610x1075 |
| G.WIN.W (kg) |
210/180 |
230/200 |
270/218 |
252/227 |
|
