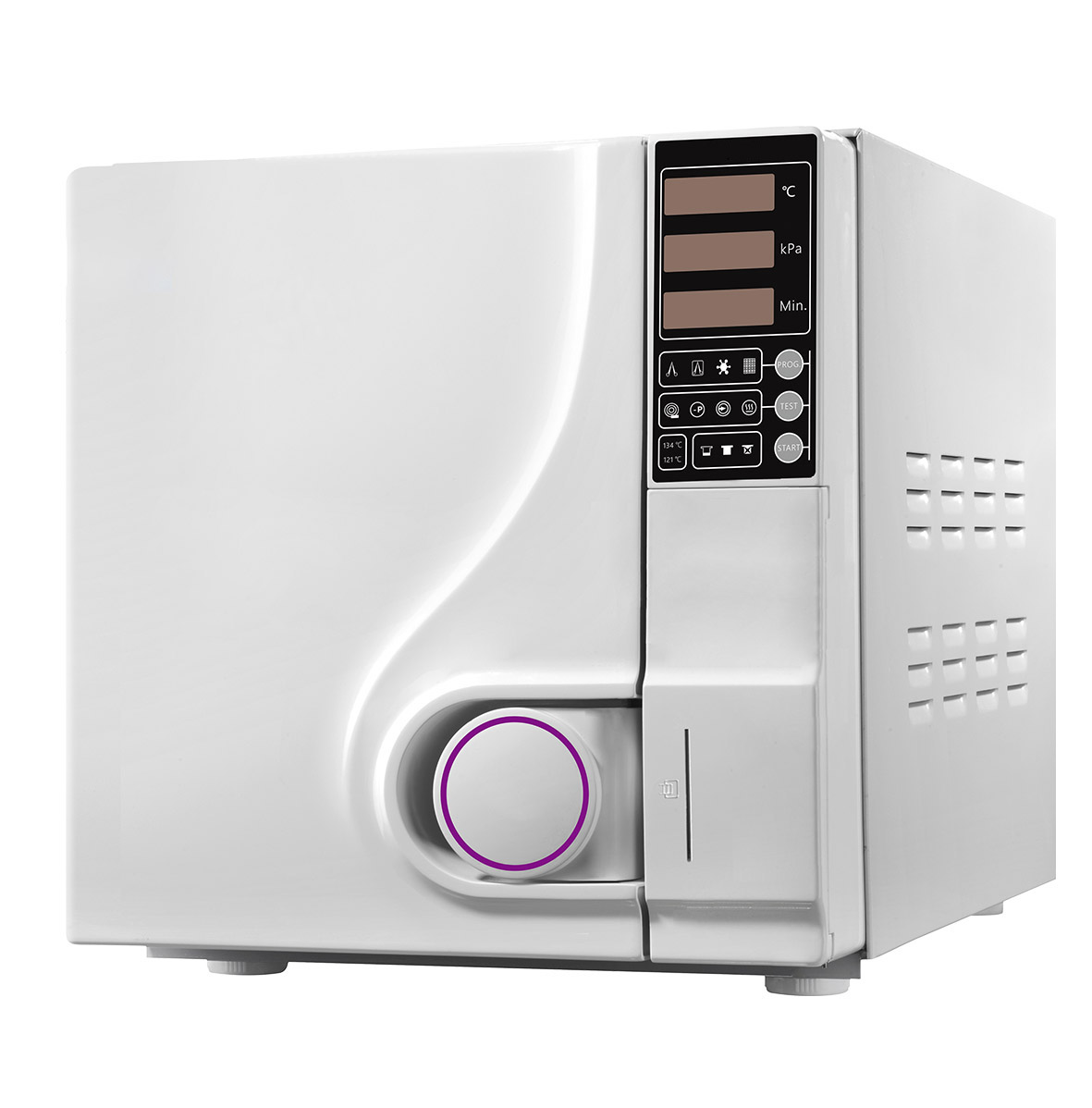

8L Mini Tabletop Frontload With 3-times Pre-vacuum and Drying Autoclave For Medical & Dental Use
Application
Small capability suitable for Dental Clinic, Hospital, First-aid Station, Laboratory, Veterinary hospital, Beauty Parlor, Tattoo House, saving space and operated easily.
Characteristics
• It fit EN13060 standard with opening tank on the top which is convenient to cleaning.
• Standard Class B with three times vacuum and drying, the remaining temperature of sterilized instrument is less than 0.2%.
• The vacuum data can reach -0.8bar, it fits various instrument, including package, unpackaged, solid, hollow, multi-apertures and inset pipes. It makes sure the instrument can be sterilized completely.
• Fuzzily computer controlled, digital bright show. The interface is modularized panel for easy operation.
• It is installed with BOWIE&DICK which measures the penetration of water steam.
• It has vacuum text which can make sure the ability of texting vacuuming.
• Sterilization cycle self-comment.
• Fast and independent steam generator.
• Large capacity instrument tray made of SS. SU304.
• Safety lock and triple temperature. overload protecting
• Auto/Manual water adding
• Inset cleaning device
• Special function of creating medicine cotton and sterilizing rubber items
• Handsome aspect and good quality
• Cristal LCD display
• Can connect printer to output sterilizer information.
• Warning message, Error is made easier to judge.
Main Features
|
Item No.
|
YF-TANCO-8L
|
|
Sterilization Class
|
CLASS B
|
|
Sterilization Temperature
|
121°C,134°C
|
|
Special Program
|
HIV, HBV long-sterilization program
|
|
Dry System
|
Vacuum drying system
|
|
Display
|
High-light LCD display
|
|
Testing System
|
Bowie & Dick Test, Vacuum Test, Helix Test
|
|
Control Precision
|
Temperature: 0.1°C, Pressure: 0.01bar
|
|
Sterilization Data
|
Can connect mini printer to output sterilization data
|
|
Safety System
|
Relief valve, Hand lock door, Pressure lock system, Pressure and temperature overload protection, Alarm system
|
|
Water Supply System
|
Build-in water tank easy to clean, Cubage: 4.5L
|
|
Tray Holder
|
5 layers tray holder with 3 trays
|
|
Chamber
|
Medical stainless steel 304, Max working, pressure:2.3bar, Min working pressure: -0.9bar, Max temperature: 145°C
|
|
Operation Temperature
|
5~40°C
|
|
Noise
|
<50db
|
|
Water consumption in one cycle
|
0.16L~0.18L
|
Program List
|
Program
|
Temperature
|
Pressure
|
Pre-Vacuum
|
Sterilization Time
|
Drying Time
|
|
PROMPT
|
134°C
|
2.1bar
|
1
|
3min
|
10min
|
|
PACKAGE
|
134°C
|
2.1bar
|
3
|
5min
|
10min
|
|
COTTON
|
134°C
|
2.1bar
|
3
|
15min
|
17min
|
|
RUBBER
|
134°C
|
2.1bar
|
1
|
15min
|
17min
|
Specification
|
Model
|
Voltage/Power
|
Chamber Size
|
Product Size
|
Packing Size
|
Net Weight
|
|
YF-TANCO-8L
|
220V/1400W
|
Ø170x320mm
|
540X370X360mm
|
615X440X425mm
|
37Kg
|
|
YF-TANCO-12L
|
220V/1400W
|
Ø192x320mm
|
540X370X360mm
|
615X440X425mm
|
40Kg
|
|
