     Tabletop Steam Autoclaves    23L
CLASS B-AAS-23TS

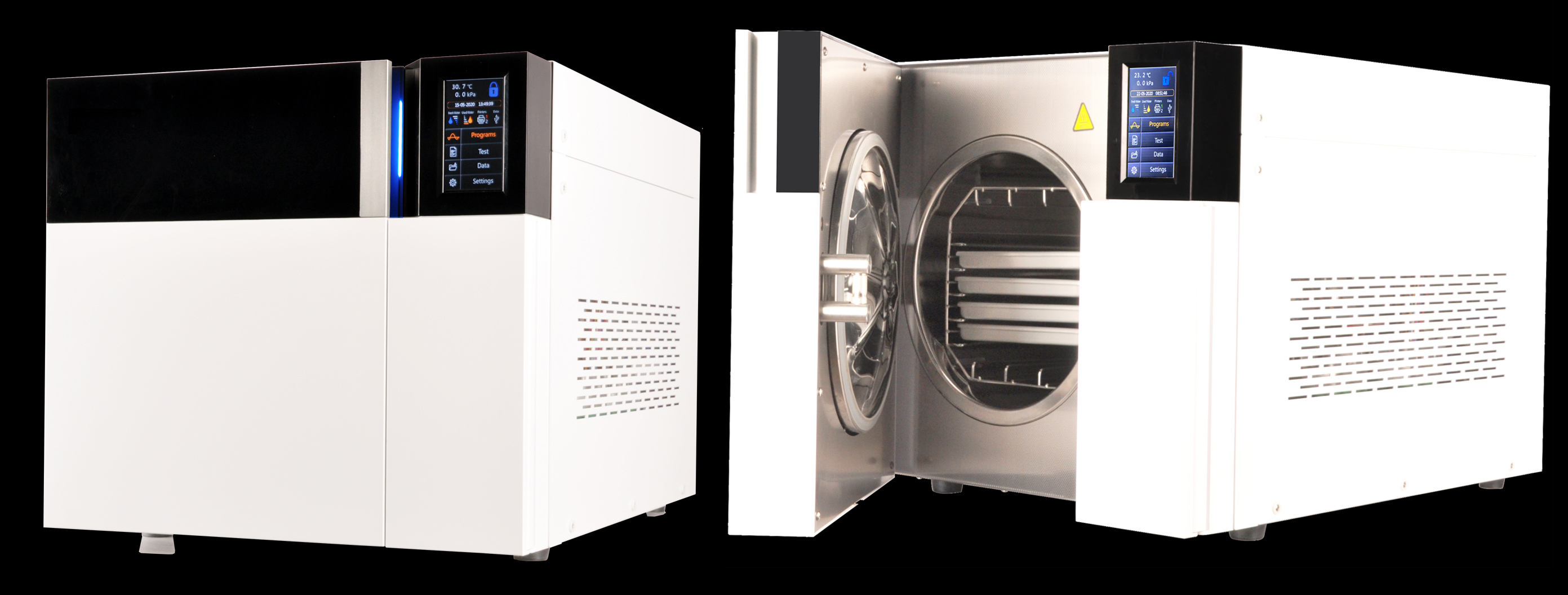

 23L Class B Tabletop Rapid Vacuum Drying Steam Sterilizer With Touch Screen

u  Application

This tabletop steam sterilizer is a new touch series, with innovative technologies design in Europe. It has the highest performance with quick cycle fastest 15 minutes only, delayed start, automatic water filling, light signature, descale cycle, label printer available.

u  Performance specifications

²  Fully automatic table top autoclave with pre-set programs.

²  Complies with European standard EN13060.

²  Full touch screen.

²  With quick cycle.

²  In built independent rapid steam generator ensures quick sterilization cycles.

²  Rapid post sterilization vacuum drying.

²  Self-initialization when work in different altitude.

²  The delayed start lets users program the sterilization cycle so the cycle also be executed outside working hours.

²  Both manual water filling and Automatic water filling.

²  Three different light indication.

²  Descale cycle included.

²  Be available to connect with SPRT to print the barcode label.

²  Multilanguage menu: Chinese, English, Spanish, German.

u  Safety and Monitoring

²  Double safety protection system prevents the cycle from starting if the door is not correctly locked. This system also prevents the door from opening if the pressure inside the chamber is not equal to atmospheric pressure outside the chamber.

²  Pressure safety valve prevents over pressure in the chamber and steam generator.

²  The power is automatically cut if a short circuit or electrical fault occurs.

²  Able to detect and identify the exact cause of any problem, and to issue a specific error code to the operator.

²  Water level main switch in the main tank controlling the min and max water level.

²  Automatic warning for maintenance.

u  Documentation

²  Printer (optional): an internal printer is optional for all our autoclaves.

²  Printer port for label printer: it can be connected with SPRT to print label.

²  USB port: it is used for connecting a USB sticker, all sterilization data are automatically written in the USB stick, and can be ready directly in any PC and stored electronically.

²  Internal Memory: the last 20 cycles can be automatically stored in the autoclave system, which can be printed out at any time.

u  Parameters

Model No.

CLASS B-AAS-18TS

CLASS B-AAS-23TS

Sterilizing Chamber & Volume

18L (Ø250×350mm)

23L (Ø250×450mm)

Overall Dimension (WxHxD)

483×450×635mm

483×450×635mm

Voltage & Frequency

220/110V, 50/60Hz

220/110V, 50/60Hz

Power

1750W

1750W

Weight

50Kgs

53Kgs

Tray Material & Quantity

Aluminum 4 PCS

Aluminum 4 PCS

Tray Size

192X285mm

192X380mm



The product information will probably be updated without notice, if that happens, please refer to the latest technical material.
