     Tabletop Steam Autoclaves    23L
CLASS B-AAS-23T

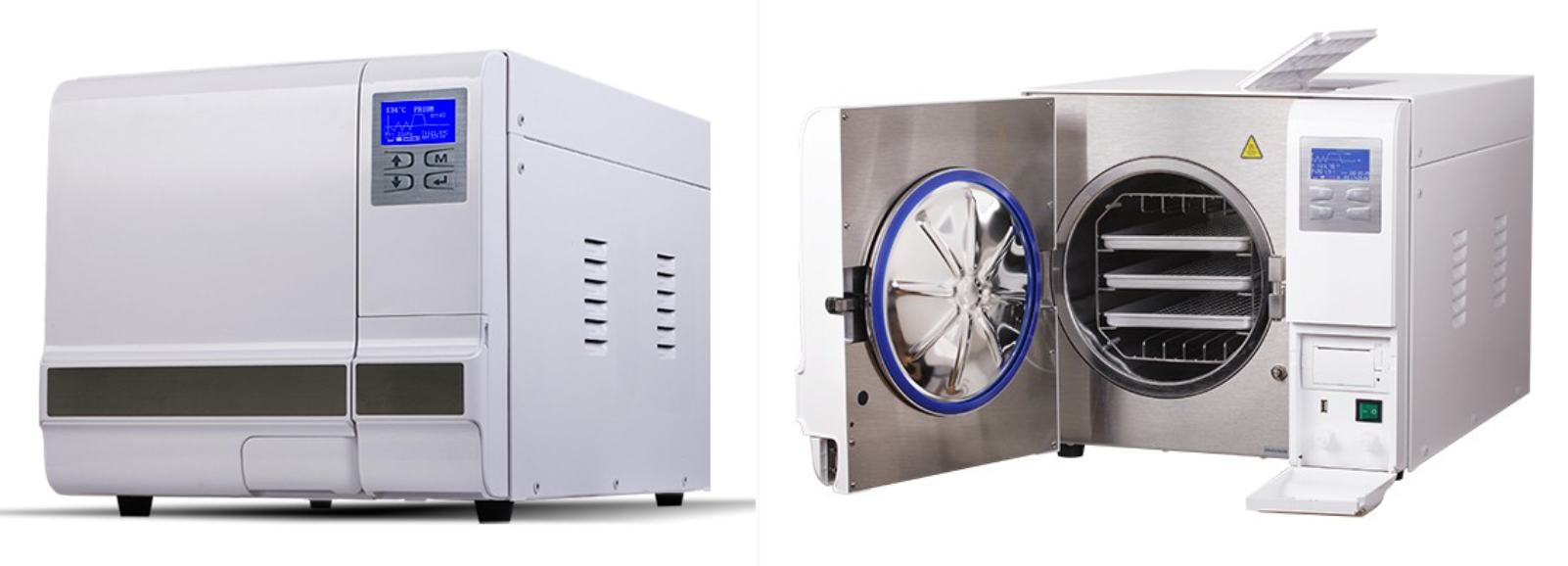

23L Benchtop Class B Pre & Post Vacuum Type Steam Sterilizer with LCD Display



u  Application

It is benchtop steam sterilizer with Class B pre & post vacuum type, with different chamber size 8 liter, 12 liter, 18 liter and 23 liter. It complies with the European standard EN13060. It needs minimal bench space so it is a good sterilization solution for small clinic such as dental, veterinary, beauty, podiatry and microbiology requirement. It is safe durable easy and quick to use.

u  Performance specifications

²  Fully automatic table top autoclave with pre-set programs.

²  Rapid post sterilization vacuum drying.

²  Built-in independent rapid steam generator ensures quick sterilization cycles.

²  Equipped with an original Japanese imported vacuum pump that is extremely quiet and ensures high vacuum efficiency.

²  With one flash water tank and used one water tank.

²  The LCD display uses a dynamic graphical appearance that can present the whole process of sterilization, including all stages of time, temperature, pressure and so on. It also shows water shortage, locking door alarm, printer not connected alarm.

²  Easy and friendly user’s interface: all operations are controlled with only 4 buttons. 3 buttons control the program selection and 1 button starts the sterilization cycle.

²  Self-initialization when work in different altitude.

²  Imported bacteria filter increases filtration efficiency and extend maintenance period.

²  304 Stainless steel chamber & three layers aluminum trays facilitate better heat conduction.

²  There are 16 different kinds of languages to meet the needs of users in various countries: Chinese, English, Spanish, German, Lithuanian, Polish, French, Czech, Hungarian, Romanian, Dutch, Latvian, Italian, Portuguese, Russian, Coratian.

u  Safety and Monitoring

²  Double safety protection system prevents the cycle from starting if the door is not correctly locked. This system also prevents the door from opening if the pressure inside the chamber is not equal to atmospheric pressure outside the chamber.

²  Pressure safety relief valve is with CE approved. It prevents over pressure in the chamber and steam generator.

²  Branded circuit breaker automatically trips when the current is not stable, which prevents the damage of device.

²  Automatically detect and identify the exact cause of any problem, and issue a specific error code on the LCD screen.

²  Water level main switch in the main tank controlling the min and max water level.

²  Automatic warning for maintenance.

²  Air vent of cooling fan increases the cooling efficiency.

u  Documentation

²  Optional Built-in Printer: sterilization report can be automatically printed when each cycle end.

²  USB Port: it is used for connecting a USB sticker, all sterilization data are automatically written in the USB stick, and can be ready directly in any PC and stored electronically.

²  Internal Memory: the last 20 cycles can be automatically stored in the autoclave system, which can be printed out at any time.

u  Parameters

Model No.

CLASS B-AAS-8T

CLASS B-AAS-12T

CLASS B-AAS-18T

CLASS B-AAS-23T

Chamber volume

8L

12L

18L

23L

Chamber Dimension

Ø170×320mm

Ø200×360mm

Ø247×350mm

Ø247×450mm

Overall Dimension (WxHxD)

420×370×525mm

420×370×595mm

490×455×600mm

490×455×690mm

Voltage & Frequency

220/110V, 50/60Hz

Power

2000W

2200W

Weight

37Kgs

40Kgs

47Kgs

53Kgs

Tray Material

Aluminum

Stainless Steel

Aluminum

Aluminum

Tray Quantity (PCS)

2/ Max. 3

2/ Max. 3

3/ Max. 5

3/ Max. 5

Tray Size

130X265mm

156X295mm

192X285mm

192X380mm



The product information will probably be updated without notice, if that happens, please refer to the latest technical material.
